DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsN223F

Watts Flanged Super Capacity Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model N223F. Enlarged diaphragm, spring cage, and seat orifice for super capacity performance; Semi-balanced piston feature for rapid response and maximum flow; Sealed spring cage for accessible outdoor or pit installations; Renewable stainless steel seat. material: Iron body, Stainless steel piston

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFN223F.pdfData sheet

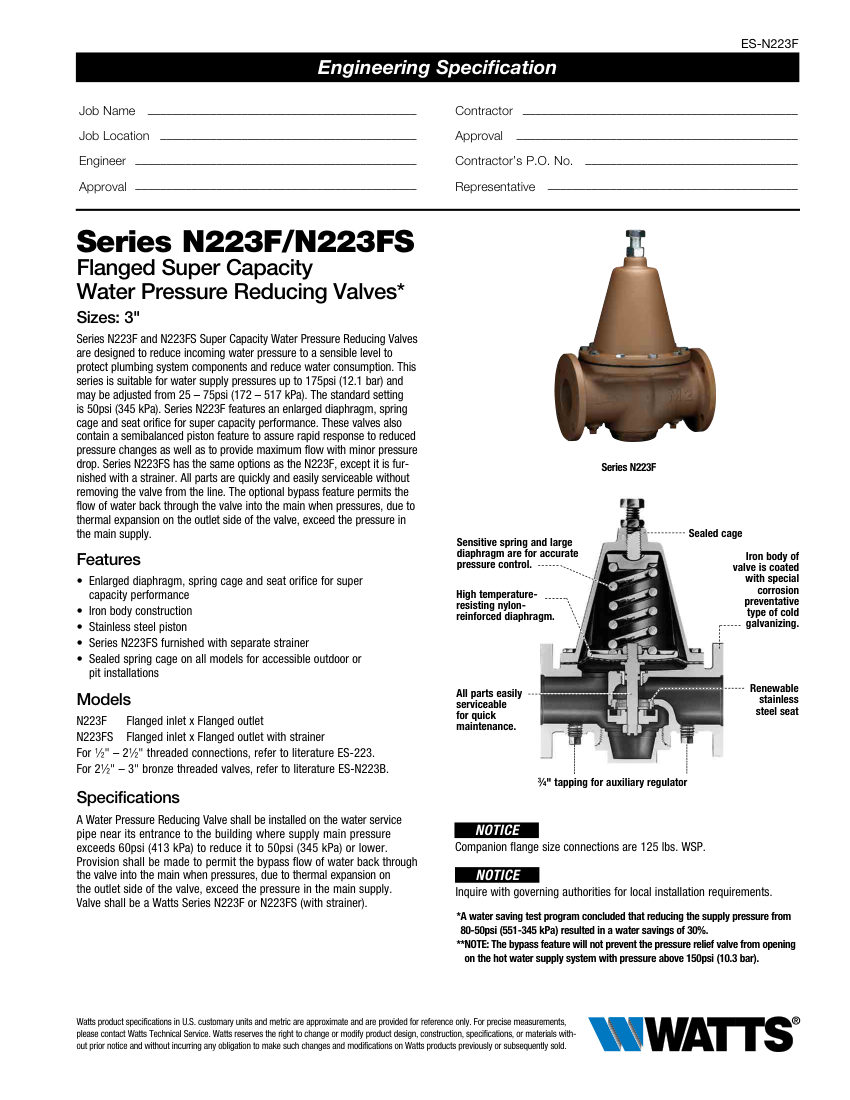

Watts N223F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
N223F
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberN223F
DescriptionWatts Flanged Super Capacity Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model N223F. Enlarged diaphragm, spring cage, and seat orifice for super capacity performance; Semi-balanced piston feature for rapid response and maximum flow; Sealed spring cage for accessible outdoor or pit installations; Renewable stainless steel seat. material: Iron body, Stainless steel piston
Connection size3"
End connectionFlanged inlet x Flanged outlet
Pressure RatingUp to 175psi (12.1 bar) inlet; Adjustable 25-75psi (172-517 kPa) outlet
FinishCold galvanizing
MountingFlanged.

Also cataloged as: N223FS, N223F-S, N223F-WR
