DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsN250

Watts Water Pressure Reducing Valve (Pressure Reducing Valves). Model N250. Standard reduced pressure setting is 50psi (345 kPa); Includes integral stainless steel strainer; Serviceable without removing valve from line; Optional thermal expansion bypass feature available (N250B). material: Iron body, Brass stem/disc, Stainless steel seat/strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFN250.pdfData sheet

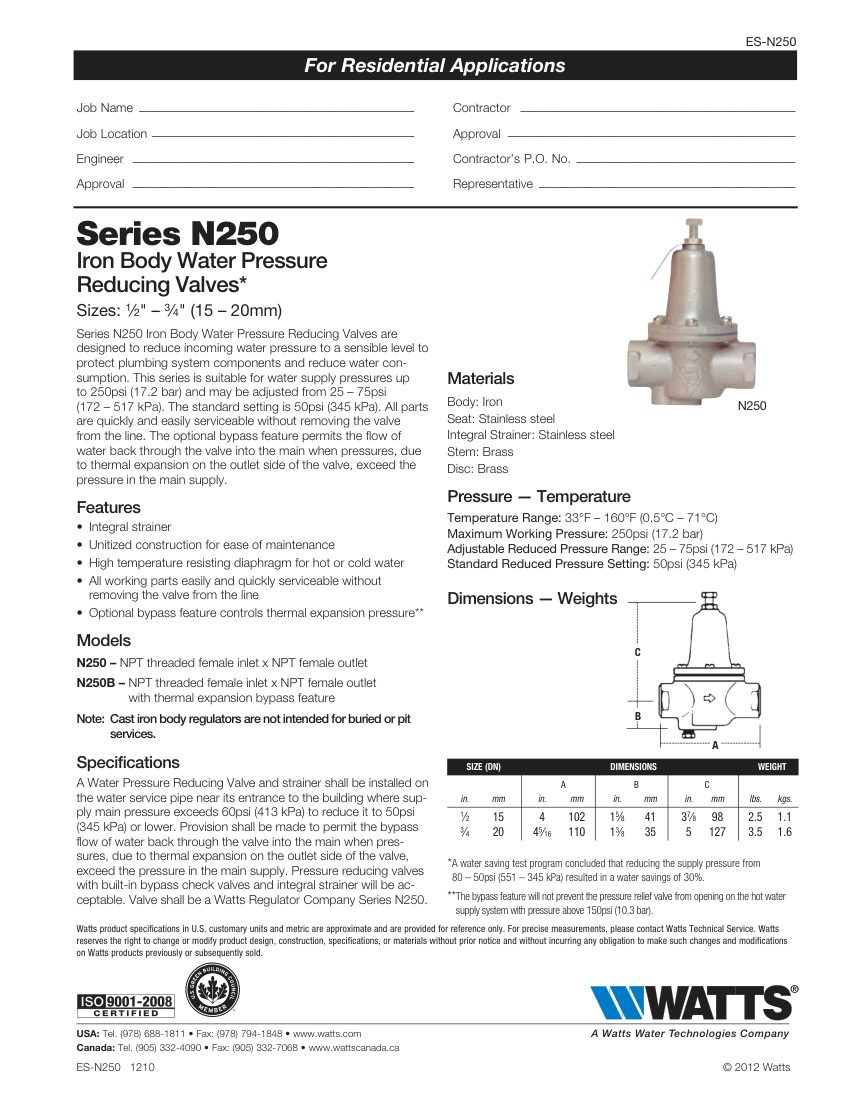

Watts N250 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
N250
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberN250
DescriptionWatts Water Pressure Reducing Valve (Pressure Reducing Valves). Model N250. Standard reduced pressure setting is 50psi (345 kPa); Includes integral stainless steel strainer; Serviceable without removing valve from line; Optional thermal expansion bypass feature available (N250B). material: Iron body, Brass stem/disc, Stainless steel seat/strainer
Connection size1/2" – 3/4" (15 – 20mm)
End connectionNPT threaded female inlet x NPT female outlet
Pressure RatingMax 250psi (17.2 bar); Adjustable 25 – 75psi (172 – 517 kPa)
Dimensions1/2": 4" x 15/8" x 37/8"; 3/4": 45/16" x 13/8" x 5".

Also cataloged as: N250B
