DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsN45BDU-2

Watts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model N45B. Standard reduced pressure setting is 50psi (345 kPa); Includes integral stainless steel strainer; Features bypass for thermal expansion pressure control; Serviceable in line without removal. material: Bronze body, Thermoplastic seat & cage, Stainless steel strainer, Reinforced EPDM diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFN45BDU-2.pdfData sheet

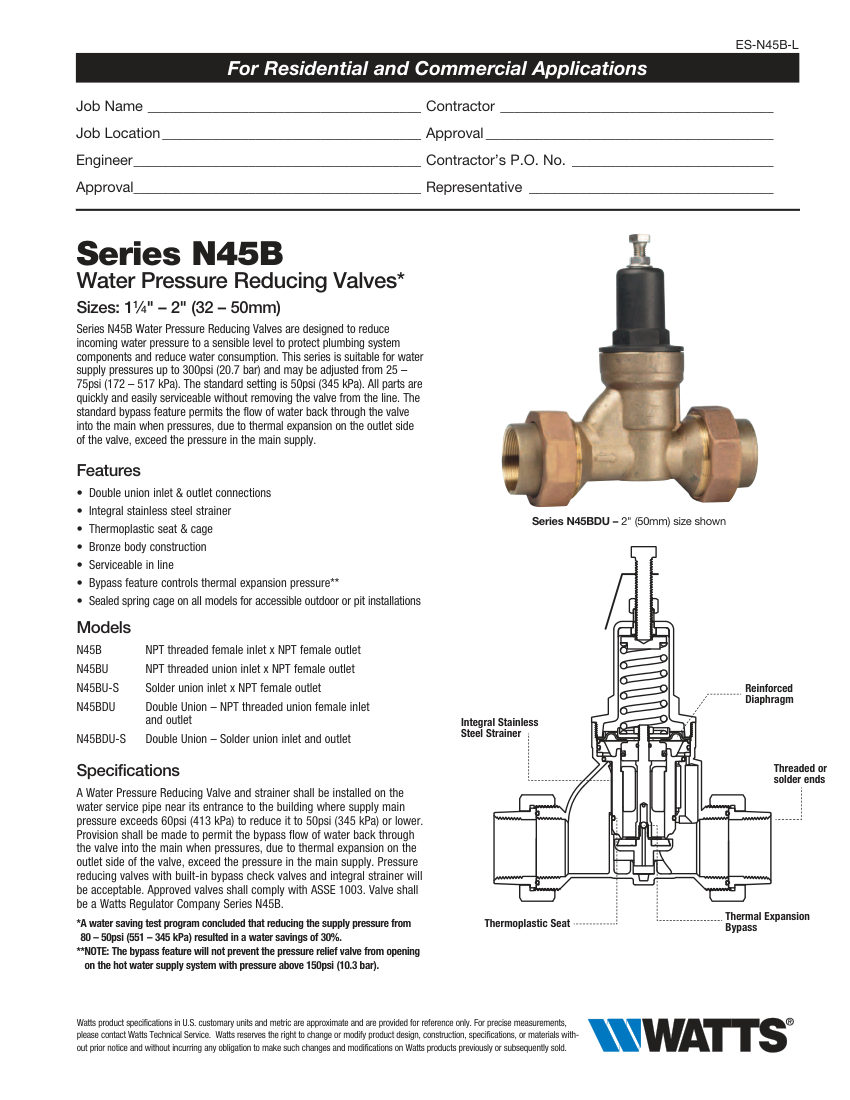

Watts N45BDU-2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
N45BDU-2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberN45BDU-2
DescriptionWatts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model N45B. Standard reduced pressure setting is 50psi (345 kPa); Includes integral stainless steel strainer; Features bypass for thermal expansion pressure control; Serviceable in line without removal. material: Bronze body, Thermoplastic seat & cage, Stainless steel strainer, Reinforced EPDM diaphragm
Connection size1-1/4" – 2" (32 – 50mm)
End connectionNPT threaded female inlet/outlet, Union, or Solder (varies by model)
Pressure RatingMax Working Pressure: 300psi (20.7 bar); Adjustable Reduced Pressure: 25 – 75psi (
