WattsP60-M1

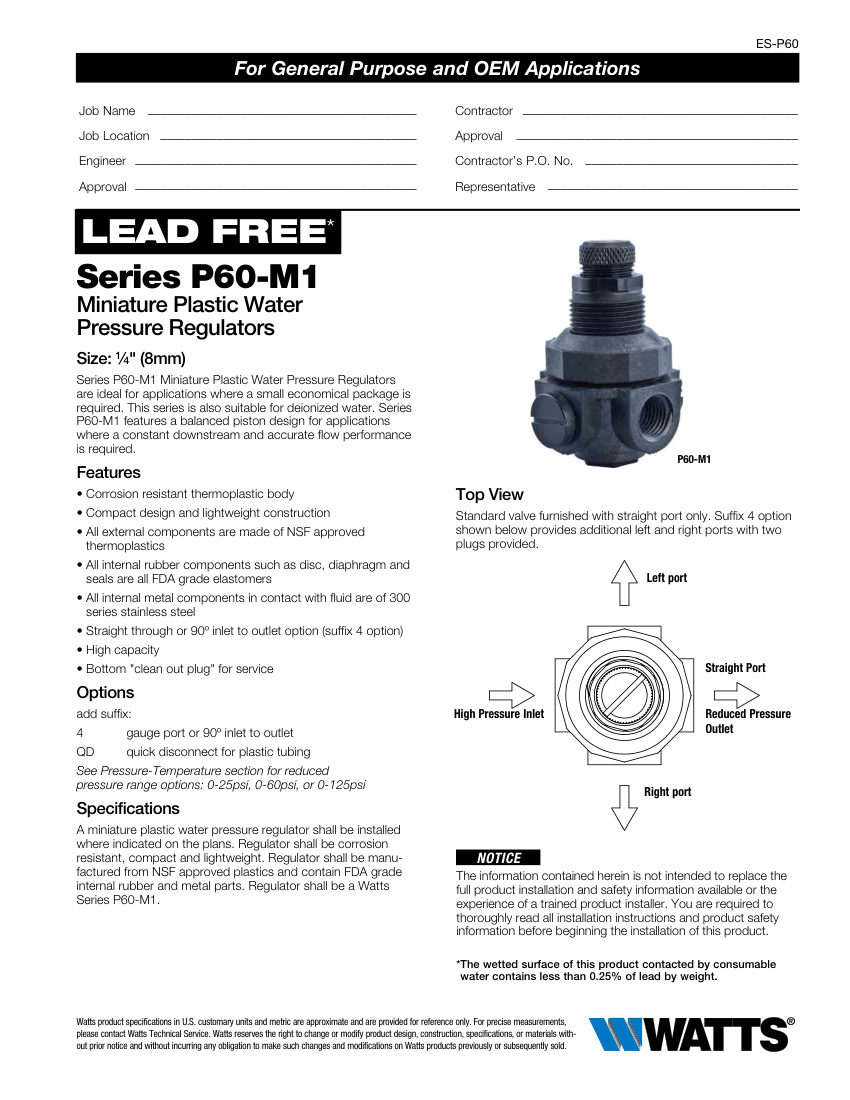

Name: Watts P60-M1
Brand: Watts
SKU: P60-M1

Watts Miniature Plastic Water Pressure Regulator (Pressure Regulators). Model P60-M1. Balanced piston design for constant downstream pressure

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	P60-M1
Description	Watts Miniature Plastic Water Pressure Regulator (Pressure Regulators). Model P60-M1. Balanced piston design for constant downstream pressure
Temperature range	33°F-150°F (0.5°C - 66°C); Corrosion resistant thermoplastic construction; Suitable for deionized water applications. material: NSF grade Noryl thermoplastic body, FDA grade Buna-N elastomers, 300 series stainless steel
Connection size	1/4" (8mm)
End connection	Straight port or 90° inlet to outlet (suffix 4)
Pressure Rating	Max Inlet 300psi (20.7 bar); Reduced Range 0-25, 0-60, or 0-125 psi
Compliance	NSF 61, Lead Free (<0.25% le

Also cataloged as: P60-M1-4, P60-M1-QD, P60-M1-A, P60-M1-B, P60-M1-C
