WattsRadiantPEX PlusPB032

Watts PEX tubing (RadiantPEX+). Model PB032061, PB032081, PB032101, PB032121, PB032161. Oxygen diffusion less than 0.10g/m3/day at 104°F (40°C); Max operating temperature 200°F (93.3°C); Min bend radius 4" (101.6 mm) for 3/8" size; Fluid capacity 0.53 to 3.12 Gal/100' depending on size. material: Cross-linked polyethylene (PEX) with EVOH barrier and polypropylene outer layer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPB032.pdfData sheet

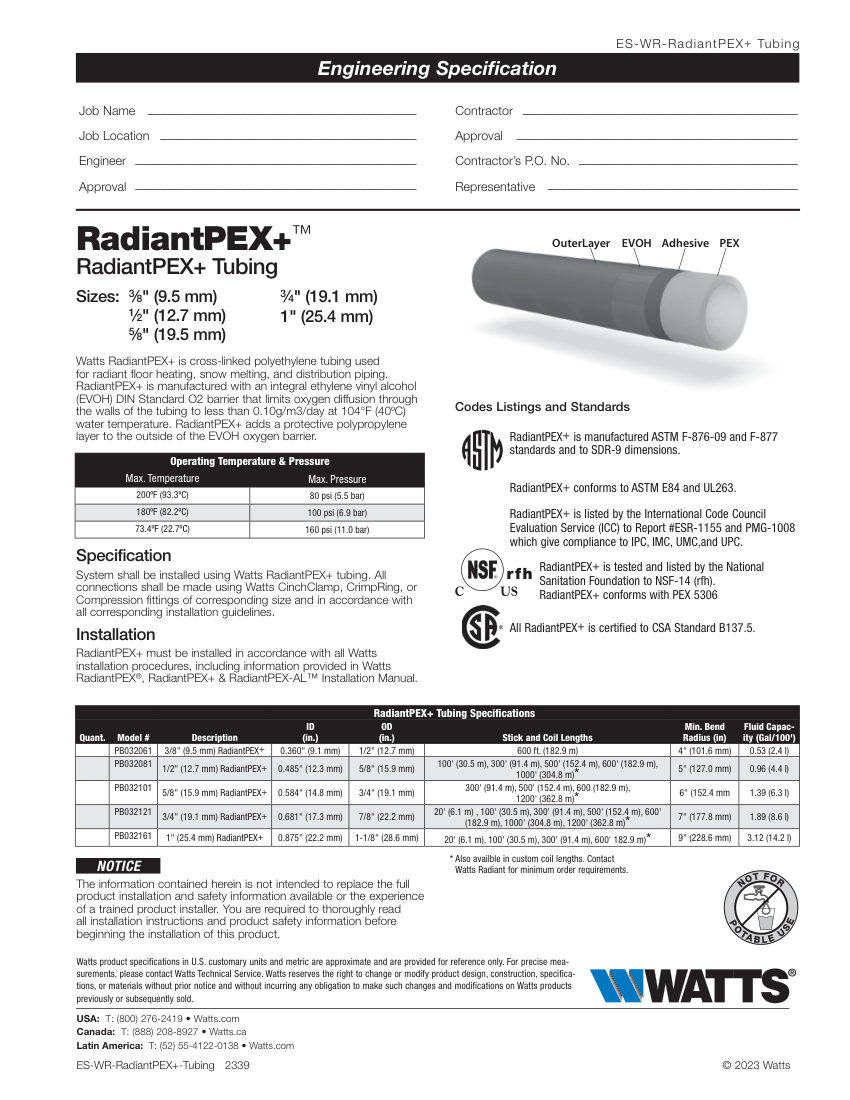

Watts PB032 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
PB032
Product type
Plumbing
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPB032
DescriptionWatts PEX tubing (RadiantPEX+). Model PB032061, PB032081, PB032101, PB032121, PB032161. Oxygen diffusion less than 0.10g/m3/day at 104°F (40°C); Max operating temperature 200°F (93.3°C); Min bend radius 4" (101.6 mm) for 3/8" size; Fluid capacity 0.53 to 3.12 Gal/100' depending on size. material: Cross-linked polyethylene (PEX) with EVOH barrier and polypropylene outer layer
Connection size3/8" (9.5 mm), 1/2" (12.7 mm), 5/8" (19.5 mm), 3/4" (19.1 mm), 1" (25.4 mm)
End connectionCinchClamp, CrimpRing, or Compression fittings
Pressure Rating80 psi (5.5 bar) at 200°F (93.3°C); 160 psi (11.0

Also cataloged as: PB032061, PB032081, PB032101, PB032121, PB032161, PB032-061, PB032-081, PB032-101, PB032-121, PB032-161, PB032-20FT
