WattsRadiantPERT Coils (French)PT032

Watts PE-RT Tubing (Radiant Piping). Model PTO32061, PTO32081, PTO32101, PTO32121, PTO32161. Max operating temperature 180 °F (82.2 °C); Oxygen diffusion < 0.10 g/m³/day at 104 °F; SDR 9 PE-RT tubing; Compatible with ASTM F1807, F2159, and F1960 fittings. material: 5-layer PE-RT with EVOH oxygen barrier

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPT032.pdfData sheet

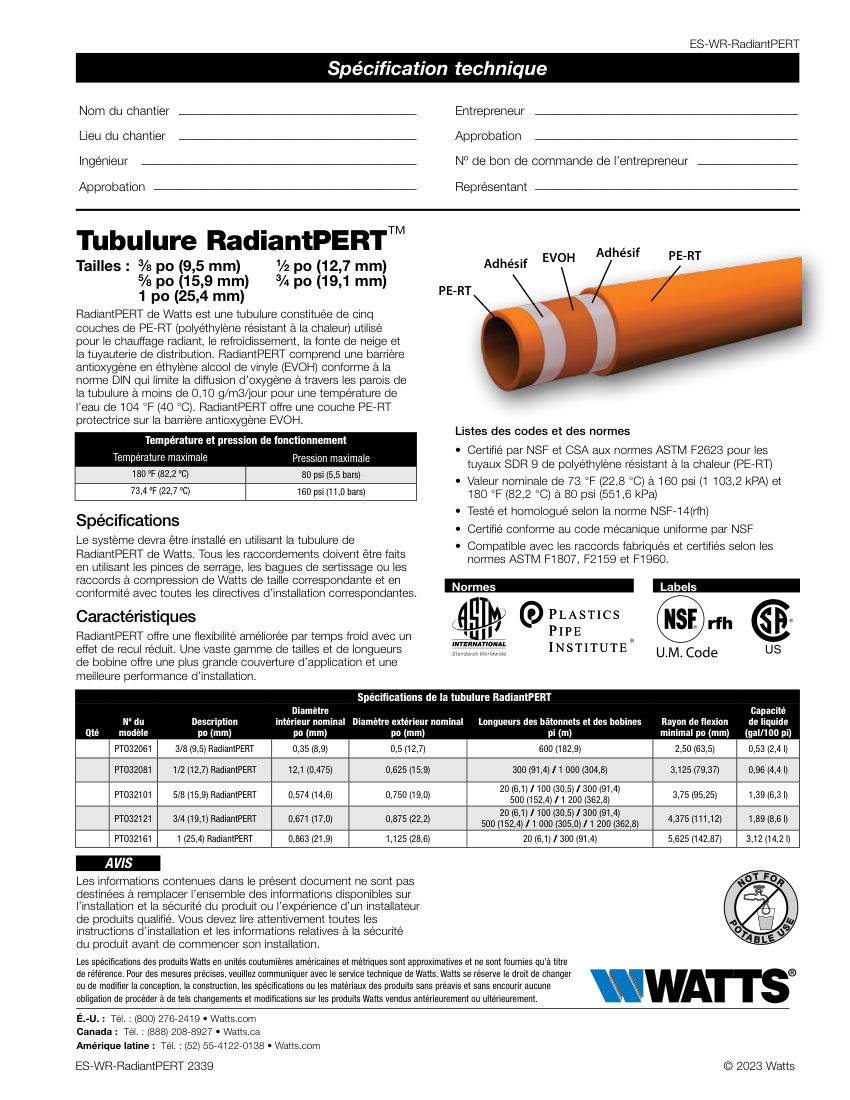

Watts PT032 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
PT032
Product type
Plumbing
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPT032
DescriptionWatts PE-RT Tubing (Radiant Piping). Model PTO32061, PTO32081, PTO32101, PTO32121, PTO32161. Max operating temperature 180 °F (82.2 °C); Oxygen diffusion < 0.10 g/m³/day at 104 °F; SDR 9 PE-RT tubing; Compatible with ASTM F1807, F2159, and F1960 fittings. material: 5-layer PE-RT with EVOH oxygen barrier
Connection size3/8 in (9.5 mm), 1/2 in (12.7 mm), 5/8 in (15.9 mm), 3/4 in (19.1 mm), 1 in (25.4 mm)
End connectionClamp, crimp, or compression fittings
Pressure Rating160 psi at 73.4 °F; 80 psi at 180 °F
DimensionsLengths vary by size (e.g., 20 ft to 1200 ft)
ComplianceNSF, CSA, AS

Also cataloged as: PT032061, PT032081, PT032101, PT032121, PT032161, PT032-061, PT032-081, PT032-101, PT032-121, PT032-161
