DIV 23 · HVACPLUMBINGCUT SHEET INDEXED

WattsRadiantPERT CoilsPT032061

Watts PE-RT Tubing (Radiant Heating Piping). Model PTO32061, PTO32081, PTO32101, PTO32121, PTO32161. Max operating temperature 180°F (82.2°C); Oxygen diffusion limit < 0.10g/m3/day at 104°F; Coil lengths range from 20 ft to 1200 ft depending on size; Min bend radius ranges from 2.5" to 5.625". material: 5-layer PE-RT with integral EVOH O2 barrier

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPT032061.pdfData sheet

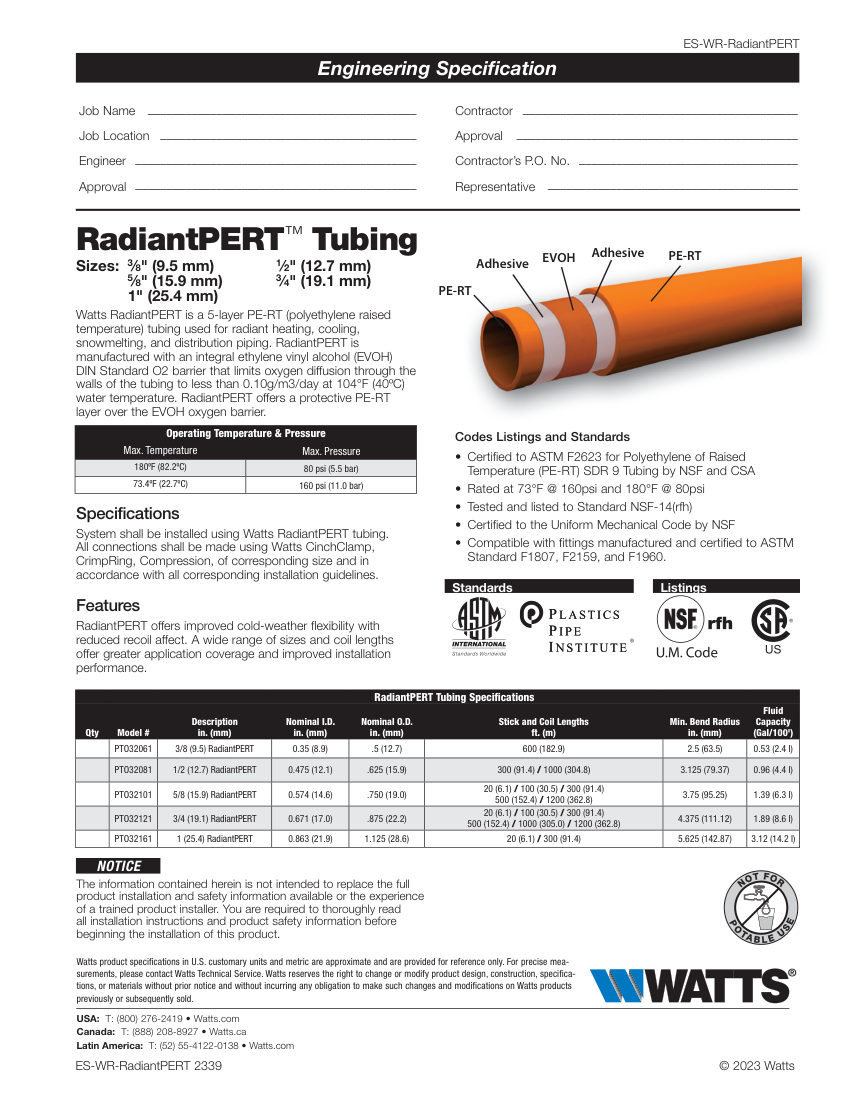

Watts PT032061 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
PT032061
Product type
Plumbing
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPT032061
DescriptionWatts PE-RT Tubing (Radiant Heating Piping). Model PTO32061, PTO32081, PTO32101, PTO32121, PTO32161. Max operating temperature 180°F (82.2°C); Oxygen diffusion limit < 0.10g/m3/day at 104°F; Coil lengths range from 20 ft to 1200 ft depending on size; Min bend radius ranges from 2.5" to 5.625". material: 5-layer PE-RT with integral EVOH O2 barrier
Connection size3/8" (9.5 mm), 1/2" (12.7 mm), 5/8" (15.9 mm), 3/4" (19.1 mm), 1" (25.4 mm)
End connectionCinchClamp, CrimpRing, Compression
Pressure Rating80 psi (5.5 bar) at 180°F; 160 psi (11.0 bar) at 73.4°F
DimensionsNominal I.D. 0.35" to

Also cataloged as: PT032081, PT032101, PT032121, PT032161
