DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsPWBWIRONPWBWIRON1

Watts Iron, Hydrogen Sulfide, and Manganese Reduction System (Whole House Water Treatment). Model PWBWIRON. Chemical-free oxidation using Filox media; Removes iron (max 10 PPM), manganese (max 5 PPM), and hydrogen sulfide (max 3 PPM); AIO control valve with electronic controller; Operating temperature range: 34°F to 110°F. material: Fiberglass tank with thermoplastic inner liner; Filox media (Manganese Dioxide)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPWBWIRON1.pdfData sheet

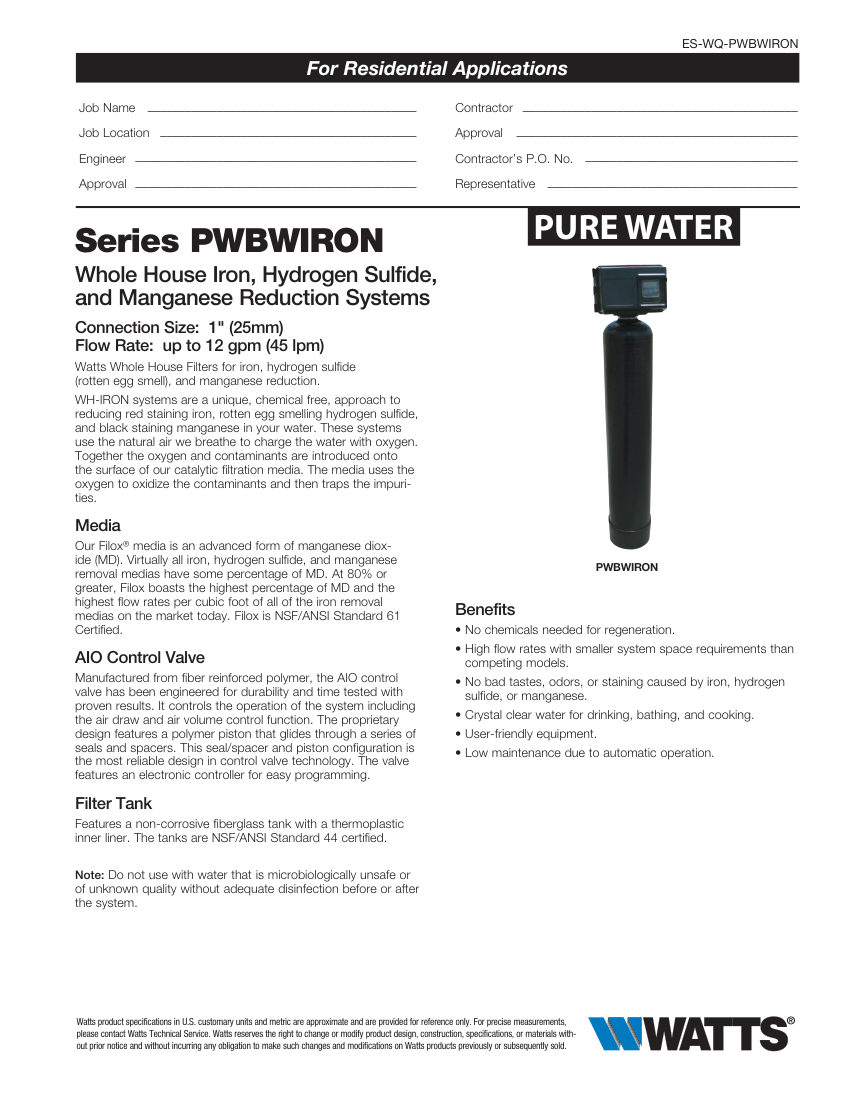

Watts PWBWIRON1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
PWBWIRON1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPWBWIRON1
DescriptionWatts Iron, Hydrogen Sulfide, and Manganese Reduction System (Whole House Water Treatment). Model PWBWIRON. Chemical-free oxidation using Filox media; Removes iron (max 10 PPM), manganese (max 5 PPM), and hydrogen sulfide (max 3 PPM); AIO control valve with electronic controller; Operating temperature range: 34°F to 110°F. material: Fiberglass tank with thermoplastic inner liner; Filox media (Manganese Dioxide)
Connection size1" (25mm)
Pressure RatingMin 30 psig, Max 80 psig
Flow RateUp to 12 gpm (45 lpm)
MountingIndoors
DimensionsVaries by model (e.g., PWBWIRON1: 16" x 15" x 55").

Also cataloged as: PWBWIRON15, PWBWIRON2, PWBWIRON-1, PWBWIRON-15, PWBWIRON-2
