DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsRD-100-CP-85

Watts IRMA Roof Drain (Roof Drain). Model RD-100-CP-85. HD Load Rating: Safe Live Load 5000-7499 lbs (2250-3375 kg)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRD-100-CP-85.pdfData sheet

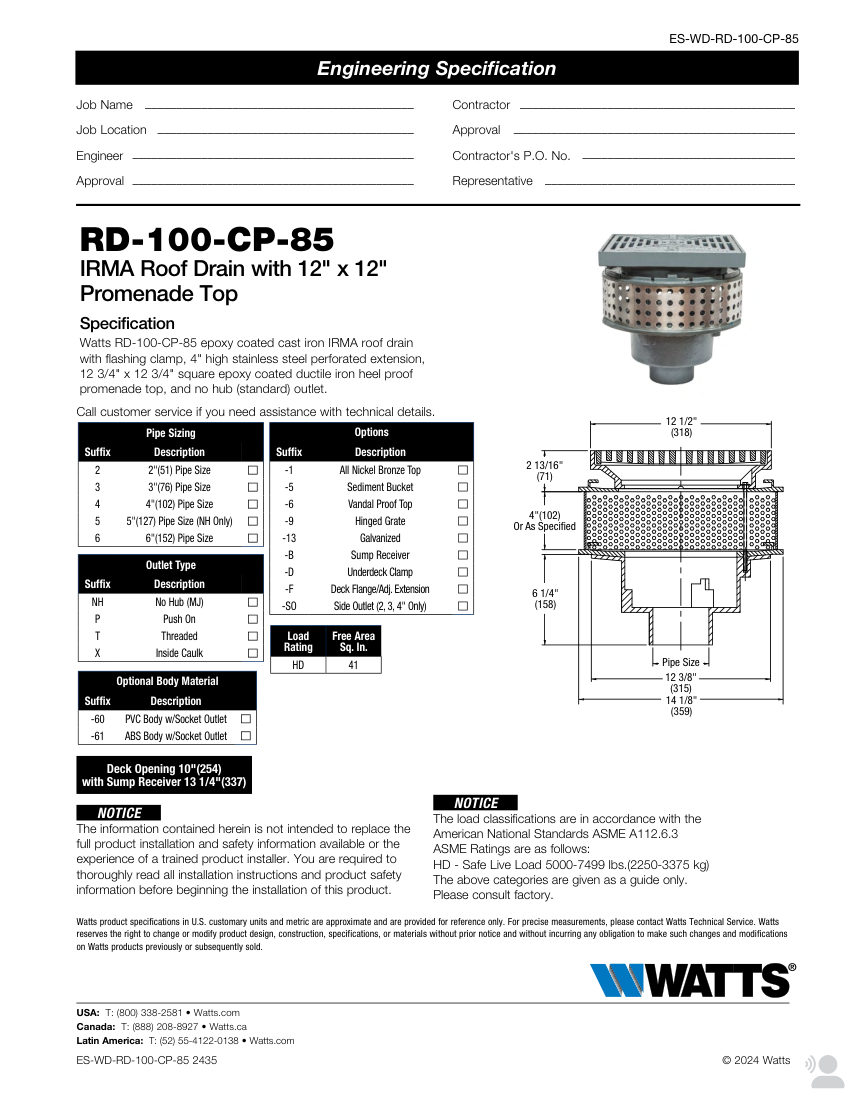

Watts RD-100-CP-85 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
RD-100-CP-85
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRD-100-CP-85
DescriptionWatts IRMA Roof Drain (Roof Drain). Model RD-100-CP-85. HD Load Rating: Safe Live Load 5000-7499 lbs (2250-3375 kg)
Free Area41 Sq. In.; Includes flashing clamp and 4" high stainless steel perforated extension; Standard outlet is No Hub (MJ). material: Epoxy coated cast iron body, 4" high stainless steel perforated extension, 12 3/4" x 12 3/4" square epoxy coated ductile iron promenade top
Connection size4" (102 mm)
End connectionNo Hub (MJ)
FinishEpoxy coated
MountingFlashing clamp, 4" high extension
Dimensions12 1/2" x 12 1/2" (318 mm) top, 10" (254 mm) deck opening.

Also cataloged as: RD-100-CP-85-2, RD-100-CP-85-3, RD-100-CP-85-4, RD-100-CP-85-5, RD-100-CP-85-6, RD-100-CP-85-NH, RD-100-CP-85-P, RD-100-CP-85-T, RD-100-CP-85-X, RD-100-CP-85--60, RD-100-CP-85--61
