Watts Overflow Roof Drain (Roof Drain). Model RD-100-R. Includes self-locking polyethylene dome (standard); Free area of 137 sq. in.; Optional body materials include PVC and ABS; Optional dome materials include Ductile Iron, Aluminum, and Stainless Steel. material: Epoxy coated cast iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRD-100-R.pdfData sheet

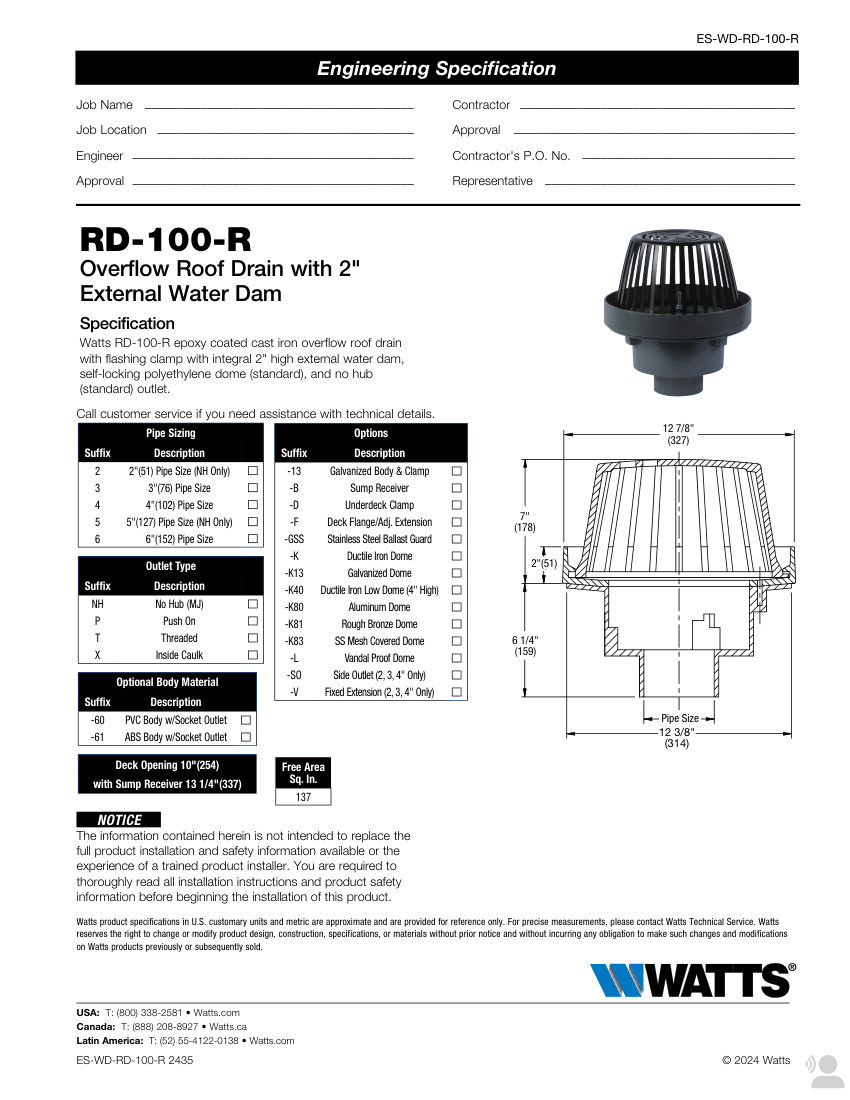

Watts RD-100-R cut sheet — first page
