DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsRadiantPEX-AL CoilsRL06-200-OR

Watts Radiant heating tubing (RadiantPEX-AL). Model RL06-200-OR, RL0508-300-OR, RL0508-500-OR, RL0508-1000-OR, RL10-300-OR, RL10-1200-OR, RL12-100-OR, RL12-300-OR, RL12-500-OR, RL16-100-OR, RL16-300-OR, RL0508-20-OR, RL10-20-OR, RL12-20-OR, RL16-20-OR. Multi-layered PEX tubing with integral aluminum oxygen barrier; Available in 3/8", 1/2", 5/8", 3/4", and 1" sizes; Maximum operating temperature is 200°F; Complies with ASTM F-1281-05 and NSF-14 (rfh). material: Cross-linked polyethylene (PEX) with aluminum inner core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRL06-200-OR.pdfData sheet

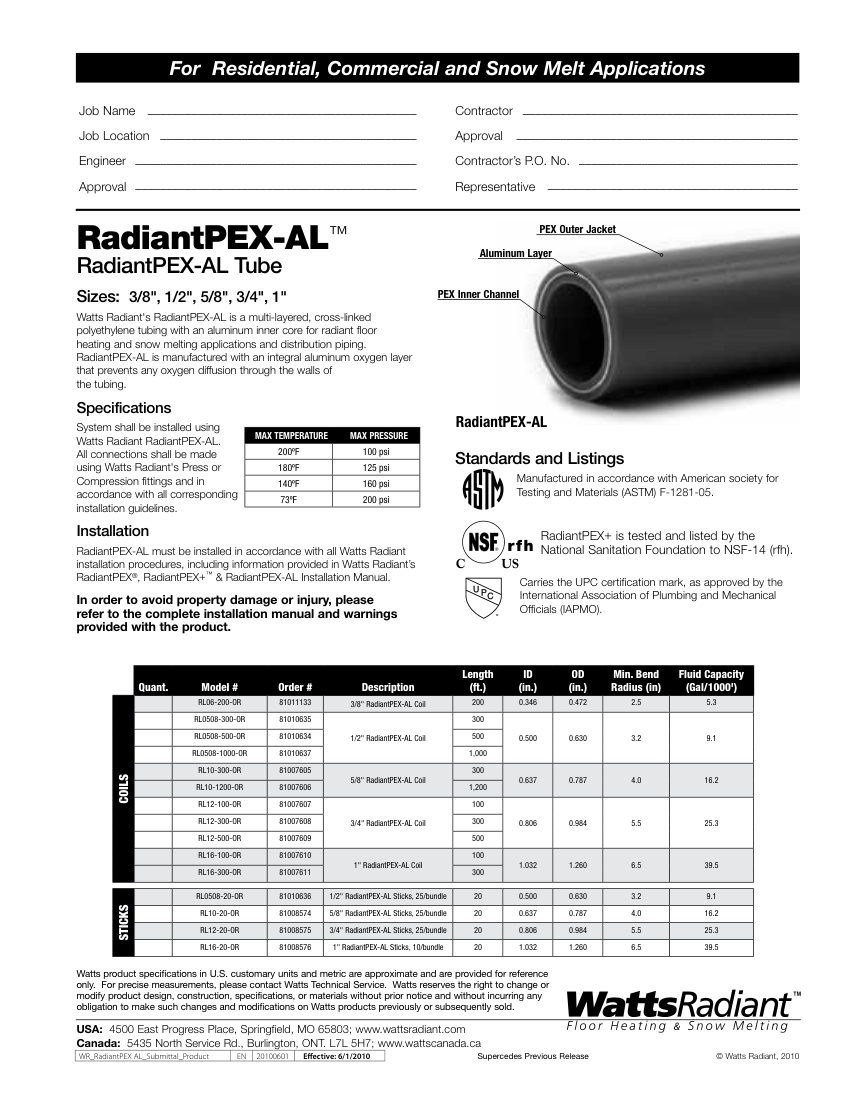

Watts RL06-200-OR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
RL06-200-OR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRL06-200-OR
DescriptionWatts Radiant heating tubing (RadiantPEX-AL). Model RL06-200-OR, RL0508-300-OR, RL0508-500-OR, RL0508-1000-OR, RL10-300-OR, RL10-1200-OR, RL12-100-OR, RL12-300-OR, RL12-500-OR, RL16-100-OR, RL16-300-OR, RL0508-20-OR, RL10-20-OR, RL12-20-OR, RL16-20-OR. Multi-layered PEX tubing with integral aluminum oxygen barrier; Available in 3/8", 1/2", 5/8", 3/4", and 1" sizes; Maximum operating temperature is 200°F; Complies with ASTM F-1281-05 and NSF-14 (rfh). material: Cross-linked polyethylene (PEX) with aluminum inner core
Connection size3/8", 1/2", 5/8", 3/4", 1"
End connectionPress or Compressi

Also cataloged as: RL0508-300-OR, RL0508-500-OR, RL0508-1000-OR, RL10-300-OR, RL10-1200-OR, RL12-100-OR, RL12-300-OR, RL12-500-OR, RL16-100-OR, RL16-300-OR, RL0508-20-OR
