WattsAutomatic Control Valve Single Chamber - Reduced PortS6100

Watts Automatic Control Valve (Watts S Series Basic Valves). Model S6100 / S61100. Single chamber design with one-piece disc and diaphragm assembly; Reduced port design for improved low-flow performance; Operating temperature up to 160°F (Buna-N), 300°F (EPDM), or 250°F (Viton); Available in Globe (S6100) and Angle (S61100) patterns. material: 316 Stainless Steel (3"-4"), 304L Stainless Steel (6"-24")

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFS6100.pdfData sheet

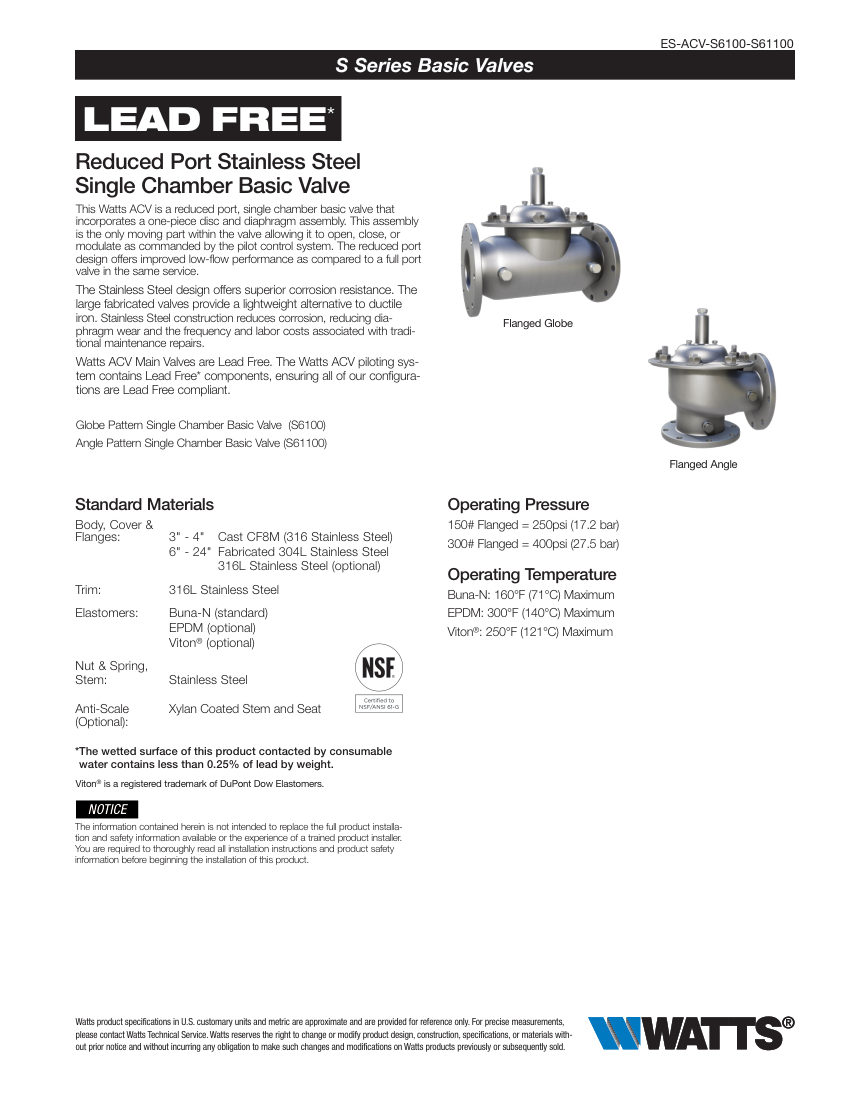

Watts S6100 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
S6100
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberS6100
DescriptionWatts Automatic Control Valve (Watts S Series Basic Valves). Model S6100 / S61100. Single chamber design with one-piece disc and diaphragm assembly; Reduced port design for improved low-flow performance; Operating temperature up to 160°F (Buna-N), 300°F (EPDM), or 250°F (Viton); Available in Globe (S6100) and Angle (S61100) patterns. material: 316 Stainless Steel (3"-4"), 304L Stainless Steel (6"-24")
Connection size3" - 24"
End connectionFlanged
Pressure Rating150# (250 psi) / 300# (400 psi)
Flow RateMax Continuous: 210-11100 GPM
Min6-400 GPM
ComplianceLead Free (<0.25% lead).

Also cataloged as: S61100
