DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsSL100XL, L100XL, LL100XL, LLL100XL (French)SL100XL

Watts T&P Relief Valve (Temperature and Pressure Relief Valves). Model SL100XL, L100XL, LL100XL, LLL100XL. Automatic closing T&P valve for water heaters up to 105,000 BTU/h; Temperature protection set at 210°F (99°C); Pressure settings available at 75, 100, 125, or 150 psi; Extended stems eliminate need for extension nipples on thick-insulated tanks. material: Brass body, stainless steel spring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSL100XL.pdfData sheet

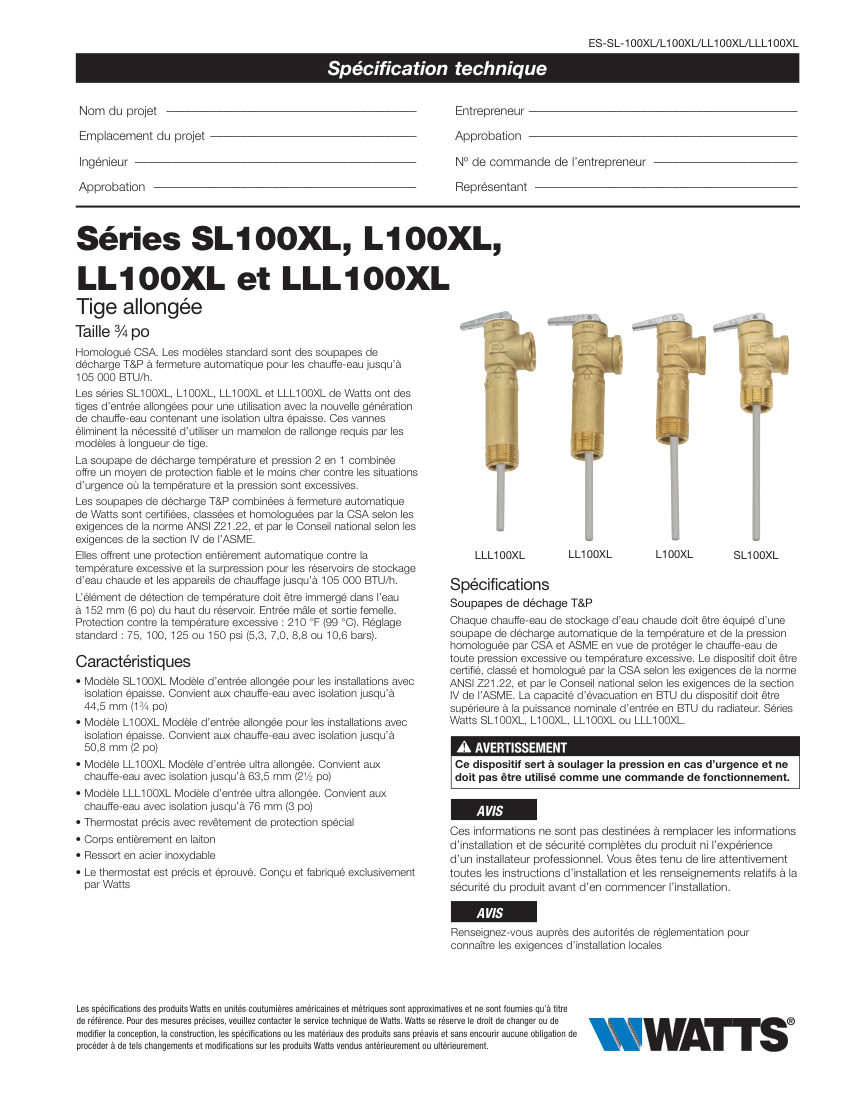

Watts SL100XL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
SL100XL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSL100XL
DescriptionWatts T&P Relief Valve (Temperature and Pressure Relief Valves). Model SL100XL, L100XL, LL100XL, LLL100XL. Automatic closing T&P valve for water heaters up to 105,000 BTU/h; Temperature protection set at 210°F (99°C); Pressure settings available at 75, 100, 125, or 150 psi; Extended stems eliminate need for extension nipples on thick-insulated tanks. material: Brass body, stainless steel spring
Connection size3/4 inch
End connectionMale inlet, female outlet
Pressure Rating75, 100, 125, or 150 psi
MountingExtended inlet stem
DimensionsInsulation compatibility up to 3 inches.

Also cataloged as: L100XL, LL100XL, LLL100XL
