DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model 123LP. Suitable for water supply pressures up to 200psi (13.8 bar); Adjustable reduced pressure range of 10 – 30psi (69 – 207 kPa); Standard reduced pressure setting is 30psi (207 kPa)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

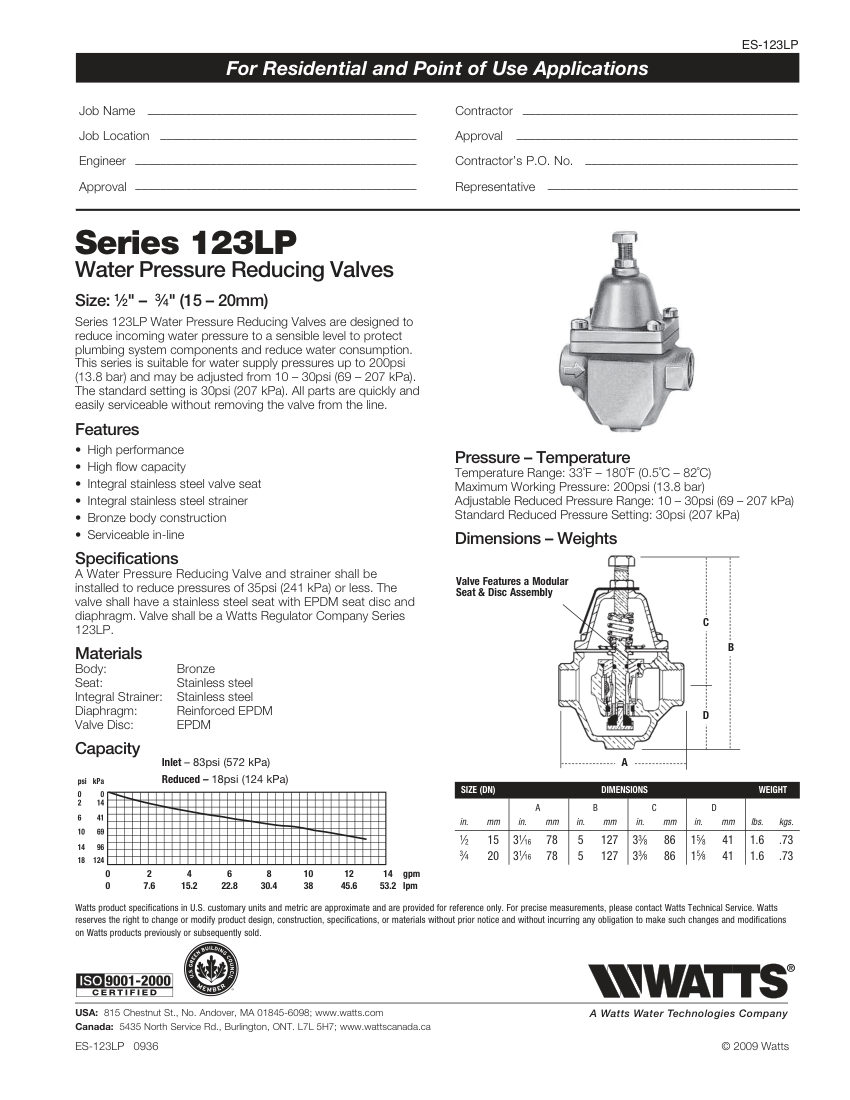

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model 123LP. Suitable for water supply pressures up to 200psi (13.8 bar); Adjustable reduced pressure range of 10 – 30psi (69 – 207 kPa); Standard reduced pressure setting is 30psi (207 kPa)
Temperature range33°F – 180°F (0.5°C – 82°C). material: Bronze body, Stainless steel seat and strainer, EPDM diaphragm and disc
Connection size1/2" – 3/4" (15 – 20mm)
Pressure RatingMax Working Pressure: 200psi (13.8 bar); Adjustable Reduced Pressure: 10 – 30psi (69 – 207 kPa)
Flow RateUp to 14 gpm (53.2 lpm) at 83psi inlet / 18
