DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Iron Body Dual Control Valve (Dual Controls). Model 1450F. Combination fill valve and safety pressure relief valve; Attached pressure relief valve set at 30psi (206.9 kPa)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

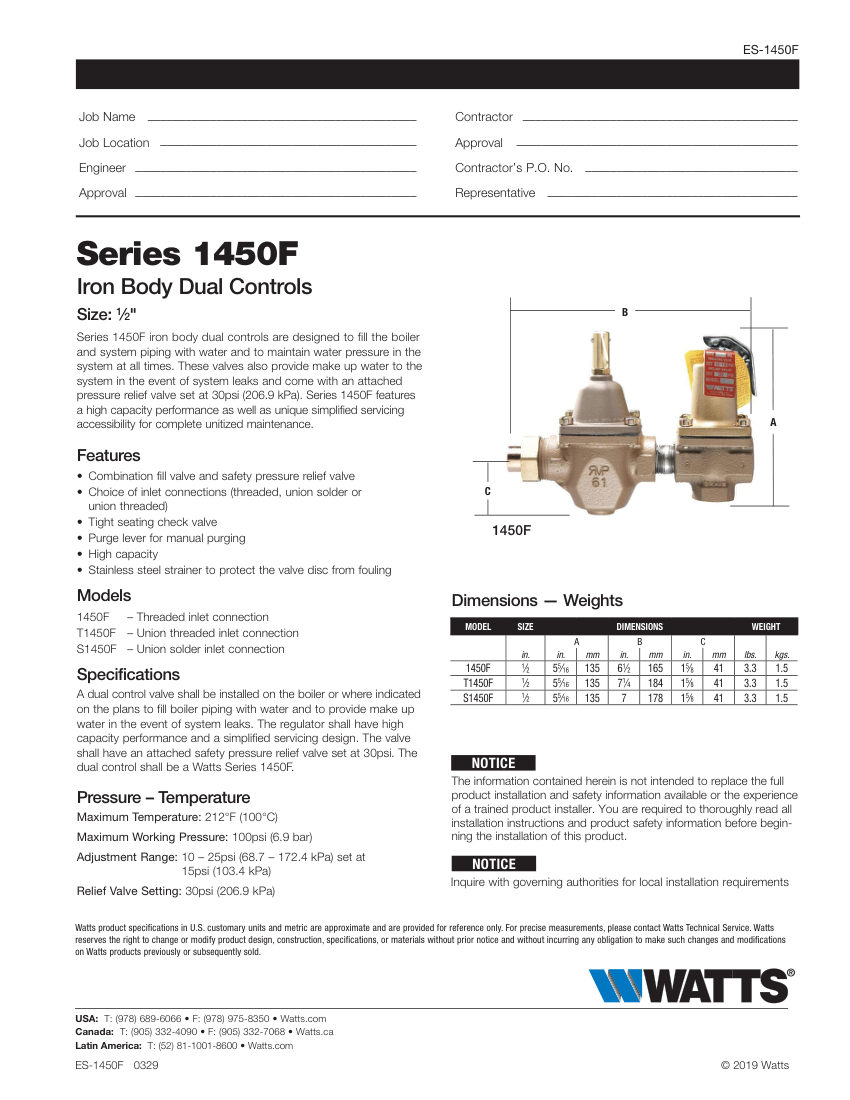

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Iron Body Dual Control Valve (Dual Controls). Model 1450F. Combination fill valve and safety pressure relief valve; Attached pressure relief valve set at 30psi (206.9 kPa)
Maximum Temperature212°F (100°C); Includes stainless steel strainer and purge lever. material: Iron body
Connection size1/2"
End connectionThreaded, Union threaded, or Union solder
Pressure RatingMax Working Pressure: 100psi (6.9 bar)
Adjustment Range10-25psi (set at 15psi)
Relief Valve Setting30psi (206.9 kPa)
DimensionsA: 5 5/16 in (135 mm), B: 6 1/2 in (165 mm) [1450F], C: 1 5/8 in (41 mm).
