Watts Water Hammer Arrestor (Water Hammer Arrestors). Model 15M2. Pre-charged permanent sealed air chamber; Air pre-load is 60psi (4.2 bar); Temperature range 33°F to 180°F (0.5°C to 82°C); Maintenance free with piston as only moving part. material: Copper tubing body, Polypropylene piston, Brass adapter, EPDM O-ring
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

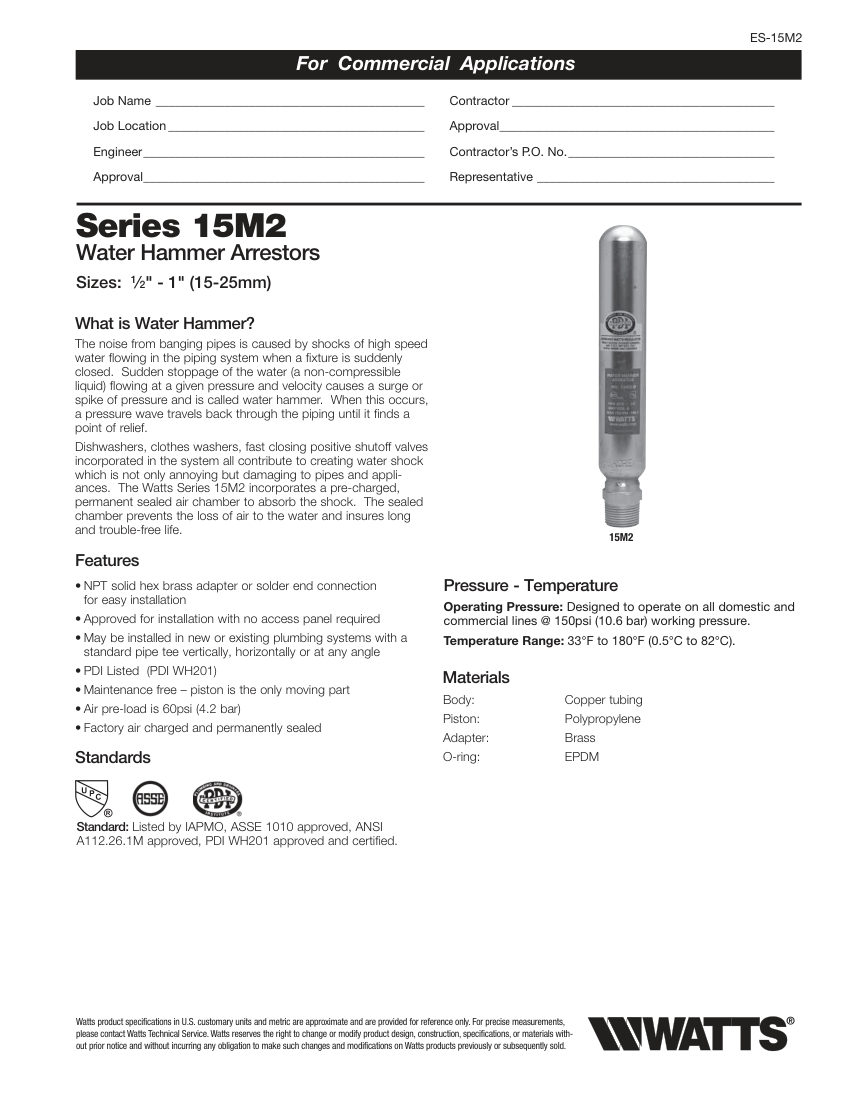

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Water Hammer Arrestor (Water Hammer Arrestors). Model 15M2. Pre-charged permanent sealed air chamber; Air pre-load is 60psi (4.2 bar); Temperature range 33°F to 180°F (0.5°C to 82°C); Maintenance free with piston as only moving part. material: Copper tubing body, Polypropylene piston, Brass adapter, EPDM O-ring |
| Connection size | 1/2" - 1" (15-25mm) |
| End connection | NPT solid hex brass adapter or solder end |
| Pressure Rating | 150psi (10.6 bar) working pressure |
| Mounting | Vertical, horizontal, or any angle via standard pipe tee |
| Compliance | IAPMO, ASSE 1010, ANSI A112.26.1M, PDI WH201. |
