Watts

Watts Low Pressure Regulator (Pressure Regulators). Model Series 215. Rugged forged brass body for water service; Replaceable stainless steel seat; 30 mesh stainless steel strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

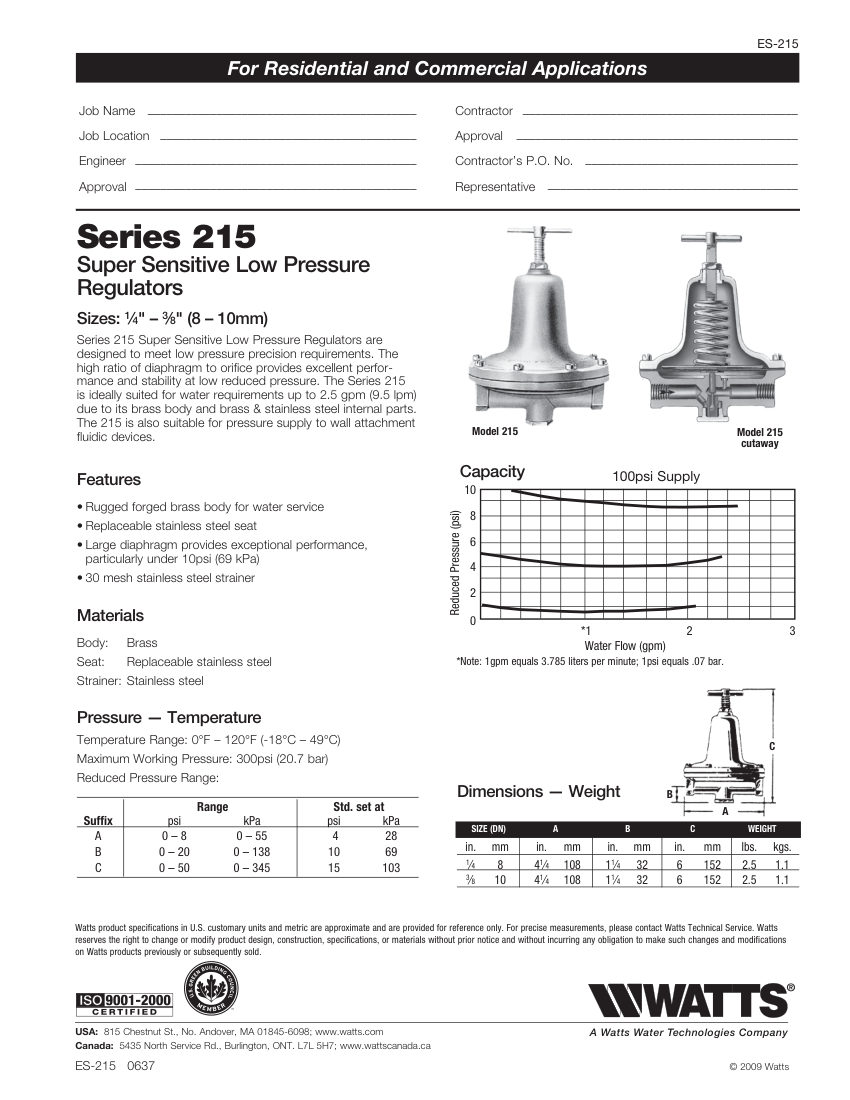

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Low Pressure Regulator (Pressure Regulators). Model Series 215. Rugged forged brass body for water service; Replaceable stainless steel seat; 30 mesh stainless steel strainer
Temperature Range0°F – 120°F (-18°C – 49°C). material: Forged brass body, stainless steel seat and strainer
Connection size1/4" – 3/8" (8 – 10mm)
Pressure RatingMax Working Pressure: 300psi (20.7 bar)
Reduced Pressure Range0–50 psi (0–345 kPa)
Flow RateUp to 2.5 gpm (9.5 lpm)
Dimensions1/4" (8mm): A=4-1/4" (108mm), B=1-1/4" (32mm), C=6" (152mm); 3/8" (10mm): A=4-1/4" (108mm), B=1-1/4" (32mm), C=6" (15
