DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Name: Watts
Brand: Watts

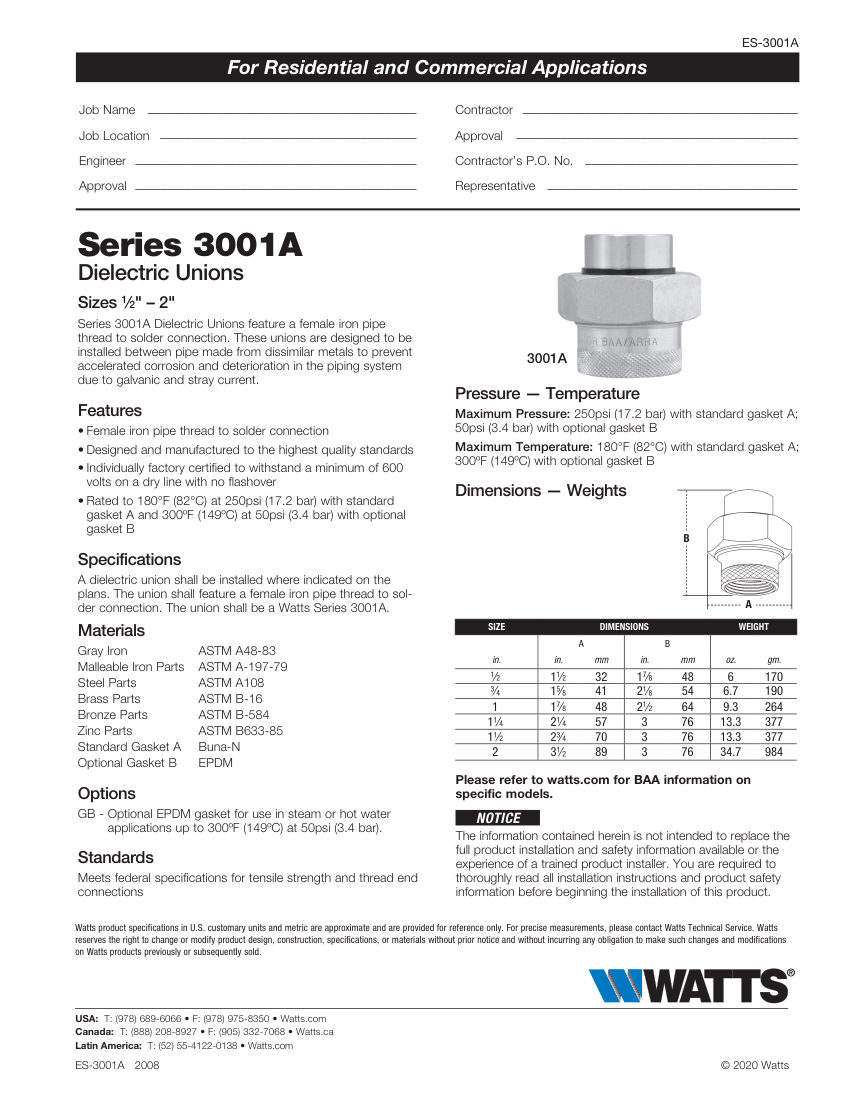

Watts Dielectric Union (Dielectric Unions). Model 3001A. Prevents galvanic corrosion between dissimilar metals

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Watts Dielectric Union (Dielectric Unions). Model 3001A. Prevents galvanic corrosion between dissimilar metals
Standard Gasket A	Buna-N, rated 180°F (82°C) at 250psi
Optional Gasket B	EPDM, rated 300°F (149°C) at 50psi; Individually factory certified for 600V dielectric strength. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc
Connection size	1/2" – 2"
End connection	Female iron pipe thread to solder
Pressure Rating	250psi (17.2 bar) with standard gasket A; 50psi (3.4 bar) with optional gasket B
Dimensions	See dimensions table (e.g., 1/2" size: A=1.5 in, B=1.875 in); c
