Watts
Watts Dielectric Union (Dielectric Unions). Model Series 3002. Rated to 180°F (82°C) at 250psi (17.2 bar); Prevents galvanic corrosion between dissimilar metals; Standard gasket is Buna-N; optional EPDM gasket available; Optional EPDM gasket rated for steam/hot water up to 300°F (149°C) at 50psi (3.4 bar). material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

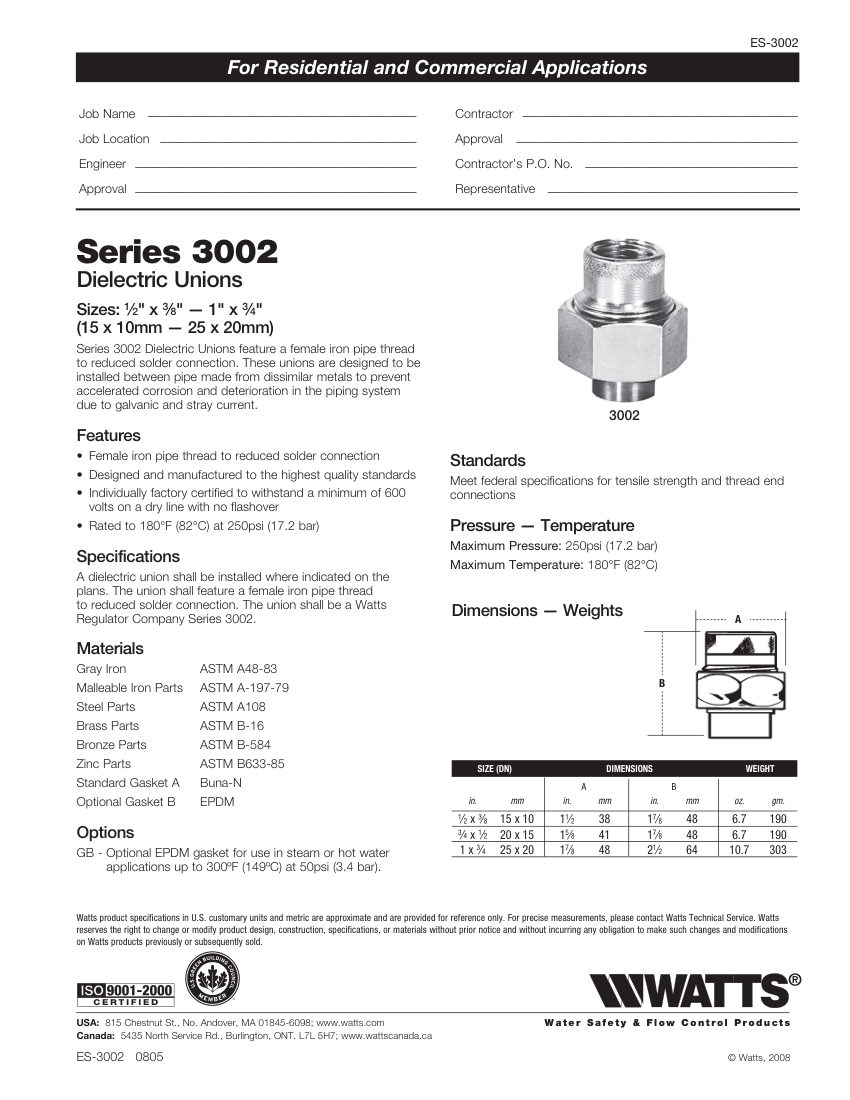

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Dielectric Union (Dielectric Unions). Model Series 3002. Rated to 180°F (82°C) at 250psi (17.2 bar); Prevents galvanic corrosion between dissimilar metals; Standard gasket is Buna-N; optional EPDM gasket available; Optional EPDM gasket rated for steam/hot water up to 300°F (149°C) at 50psi (3.4 bar). material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc |
| Connection size | 1/2" x 3/8" — 1" x 3/4" (15 x 10mm — 25 x 20mm) |
| End connection | Female iron pipe thread to reduced solder connection |
| Pressure Rating | 250psi (17.2 bar) |
| Dimensions | Varies by size (e.g., 1/2" x 3/8": A=1-1/2", B |
- Official cut sheet, indexed
- Auto-matched to your schedule
- Cover + TOC, one click
