DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Dielectric Union (Dielectric Unions). Model 3005A. Prevents galvanic corrosion between dissimilar metals; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory certified to withstand 600 volts on a dry line; Optional EPDM gasket for steam/hot water up to 300°F (149°C). material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

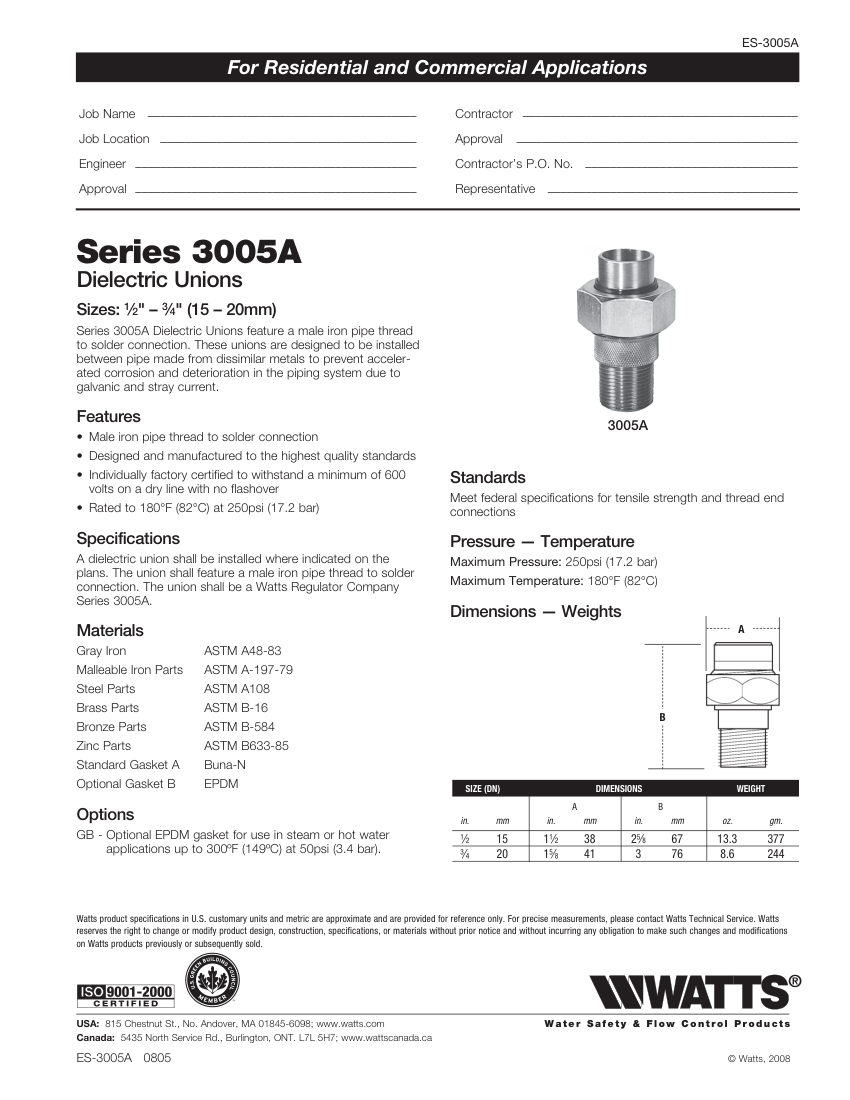

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Dielectric Union (Dielectric Unions). Model 3005A. Prevents galvanic corrosion between dissimilar metals; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory certified to withstand 600 volts on a dry line; Optional EPDM gasket for steam/hot water up to 300°F (149°C). material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc
Connection size1/2" – 3/4" (15 – 20mm)
End connectionMale iron pipe thread to solder
Pressure Rating250psi (17.2 bar)
DimensionsA: 1.5"-1.625" (38-41mm), B: 2.625"-3" (67-76mm)
ComplianceASTM A48-83, ASTM A-197-79, ASTM A108, ASTM B-16, ASTM B-584, A
