Watts
Watts Dielectric Union (Dielectric Unions). Model Series 3006. Prevents galvanic corrosion between dissimilar metals; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory certified to withstand 600 volts with no flashover; Standard gasket is Buna; optional EPDM gasket available for steam/hot water. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

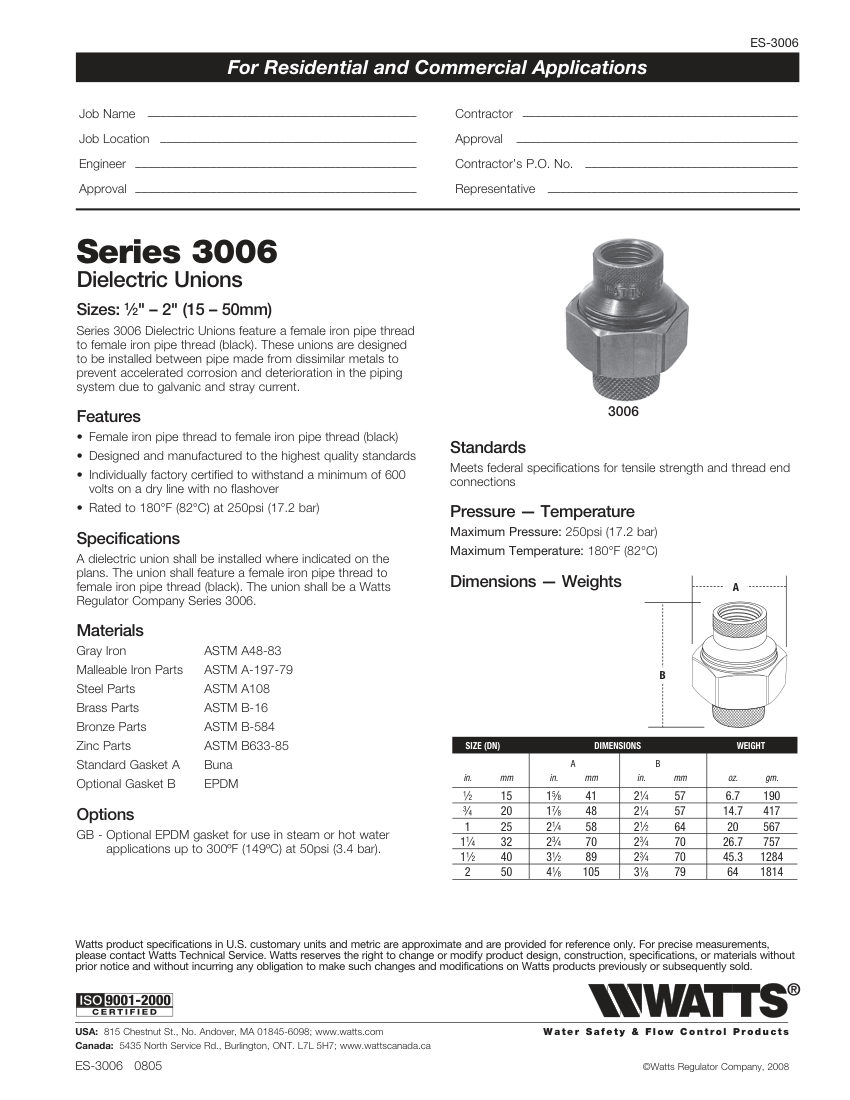

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Dielectric Union (Dielectric Unions). Model Series 3006. Prevents galvanic corrosion between dissimilar metals; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory certified to withstand 600 volts with no flashover; Standard gasket is Buna; optional EPDM gasket available for steam/hot water. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc |
| Connection size | 1/2" – 2" (15 – 50mm) |
| End connection | Female iron pipe thread to female iron pipe thread (black) |
| Pressure Rating | 250psi (17.2 bar) |
| Dimensions | See size table (e.g., 1/2" size: A=1 5/8", B=2 1/4") |
| Compliance | ASTM A48- |
