Watts
Watts Dielectric Union (Dielectric Unions). Model Series 3007. Prevents galvanic corrosion between dissimilar metals; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory certified to withstand 600 volts on a dry line; Standard gasket is Buna; optional EPDM gasket available. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

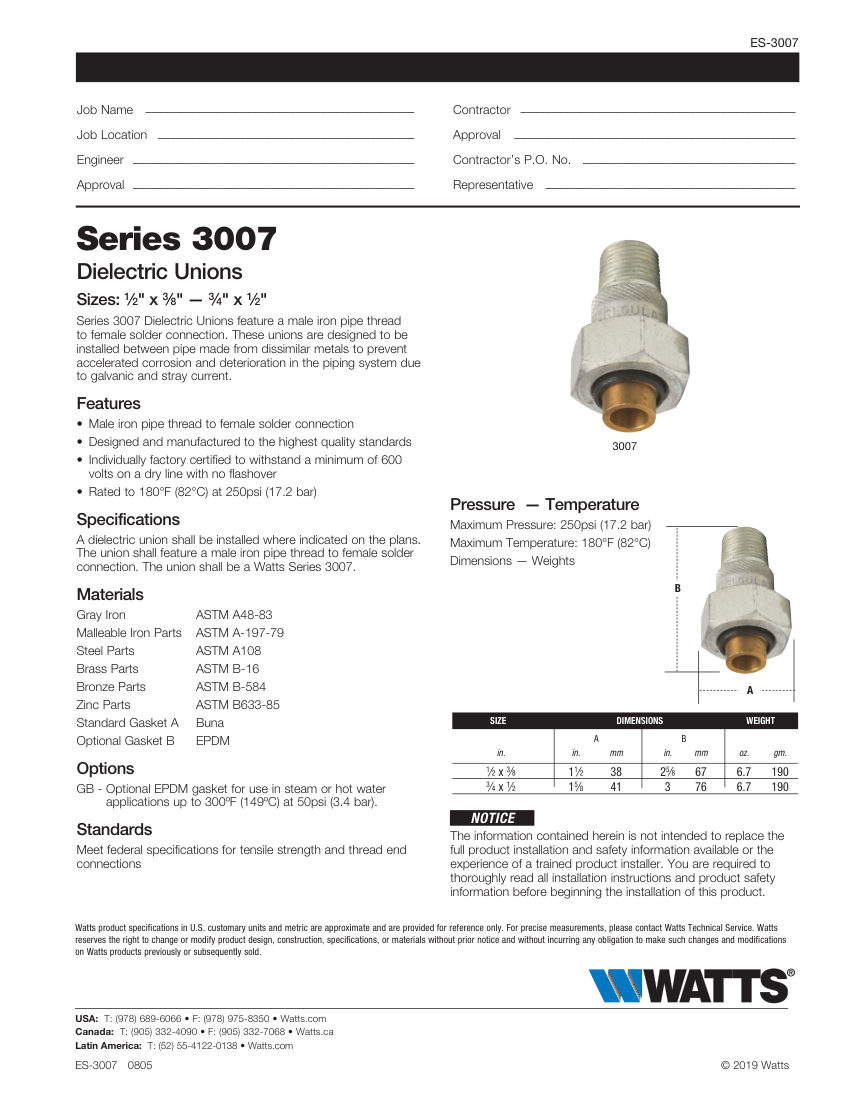

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Dielectric Union (Dielectric Unions). Model Series 3007. Prevents galvanic corrosion between dissimilar metals; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory certified to withstand 600 volts on a dry line; Standard gasket is Buna; optional EPDM gasket available. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze, Zinc |
| Connection size | 1/2" x 3/8", 3/4" x 1/2" |
| End connection | Male iron pipe thread to female solder |
| Pressure Rating | 250psi (17.2 bar) |
| Dimensions | 1/2" x 3/8": A=1.5 in, B=2.625 in; 3/4" x 1/2": A=1.625 in, B=3 in |
| Compliance | ASTM A48-83, ASTM A-197-79, ASTM A10 |
