Watts
Watts Dielectric Flanged Pipe Fitting (Dielectric Fittings). Model Series 3100. Prevents galvanic corrosion between dissimilar metals; Maximum operating temperature 180°F (82°C); Standard gasket is Buna-N; Optional EPDM gasket rated for steam/hot water up to 300°F (149°C) at 50psi. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

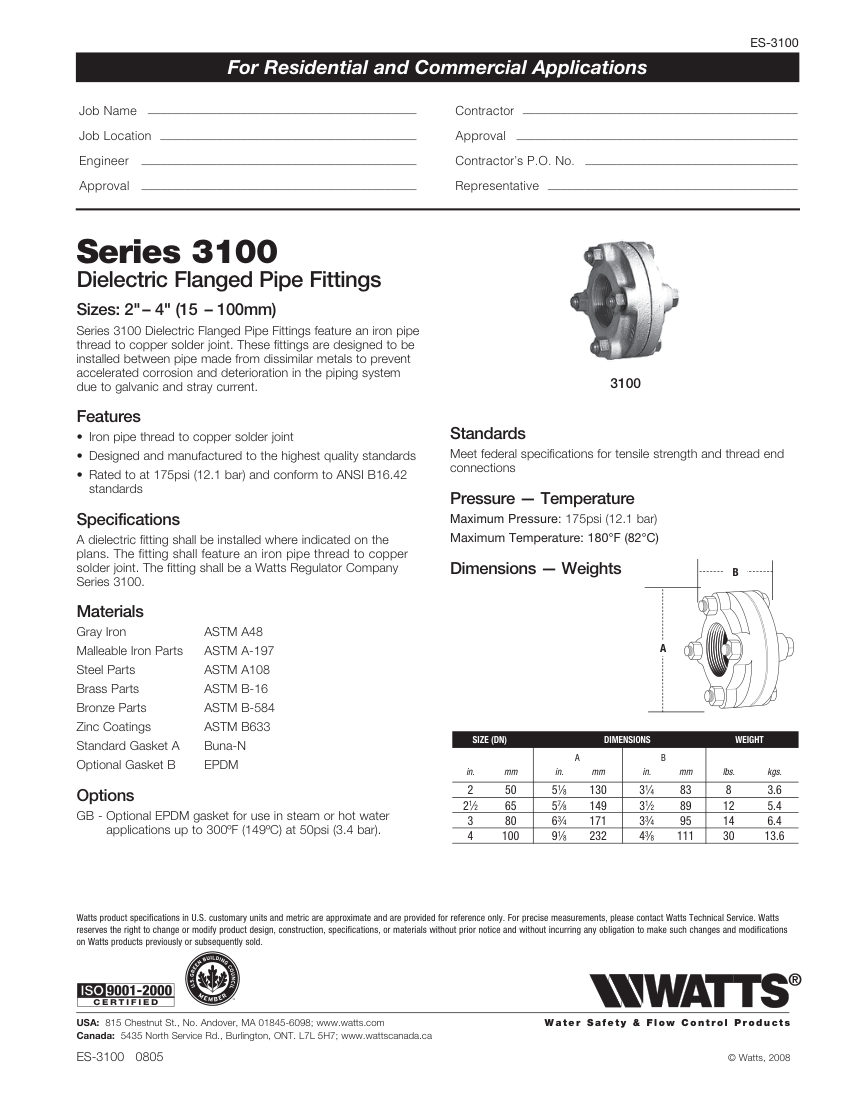

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Dielectric Flanged Pipe Fitting (Dielectric Fittings). Model Series 3100. Prevents galvanic corrosion between dissimilar metals; Maximum operating temperature 180°F (82°C); Standard gasket is Buna-N; Optional EPDM gasket rated for steam/hot water up to 300°F (149°C) at 50psi. material: Gray Iron, Malleable Iron, Steel, Brass, Bronze |
| Connection size | 2" – 4" (15 – 100mm) |
| End connection | Iron pipe thread to copper solder joint |
| Pressure Rating | 175psi (12.1 bar) |
| Dimensions | See dimension table (e.g., 2" size: A=5/18 in, B=3/14 in) |
| Compliance | ANSI B16.42, ASTM A48, ASTM A-197, ASTM A108, |
