Watts

Watts Double Check Detector Assembly (Backflow Prevention). Model 709DCDA. Designed for fire protection systems to prevent reverse flow into potable water; Includes 5/8" x 3/4" bronze meter and ball type test cocks; Features modular check assembly design for easy maintenance

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

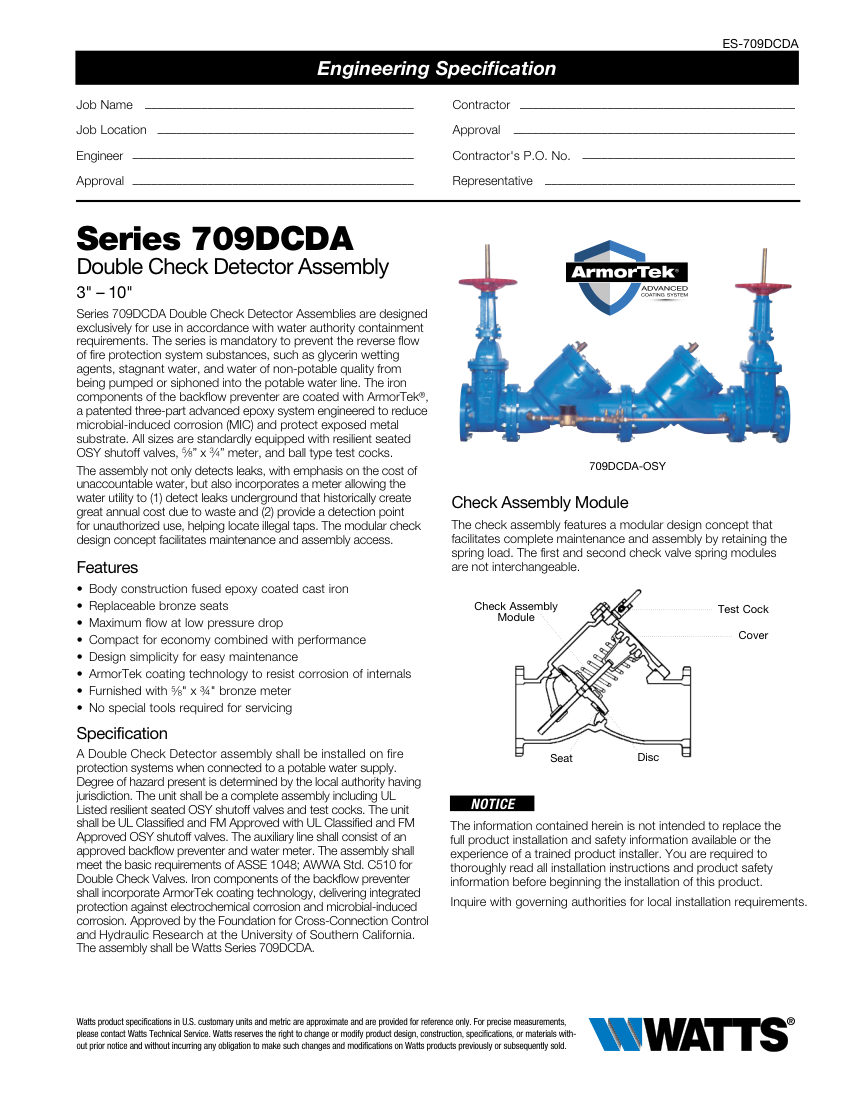

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Double Check Detector Assembly (Backflow Prevention). Model 709DCDA. Designed for fire protection systems to prevent reverse flow into potable water; Includes 5/8" x 3/4" bronze meter and ball type test cocks; Features modular check assembly design for easy maintenance
Temperature range33°F – 110°F continuous, 140°F intermittent. material: Cast iron body with ArmorTek coating, bronze seats and test cocks, stainless steel trim
Connection size3" – 10"
Pressure Rating175 psi (12.1 bar)
FinishArmorTek powder coating
ComplianceUL Classified, FM Approved, ASSE 1048, AWWA C510.
