Watts

Watts Flanged Wye Pattern Cast Iron Strainer (Strainers). Model 77F-DI-125, 77F-DI-FDA-125. 304 stainless steel perforated screens with standard perforations from 1/16" to 3/16"; Cast iron flanged retainer cap with gasket tapped for closure plug; Drain/blowoff connection furnished with closure plug; Series 77F-DI-FDA-125 features interior and exterior heat fused epoxy coating for sanitary applications. material: Cast Iron Body, 304 Stainless Steel Screens

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

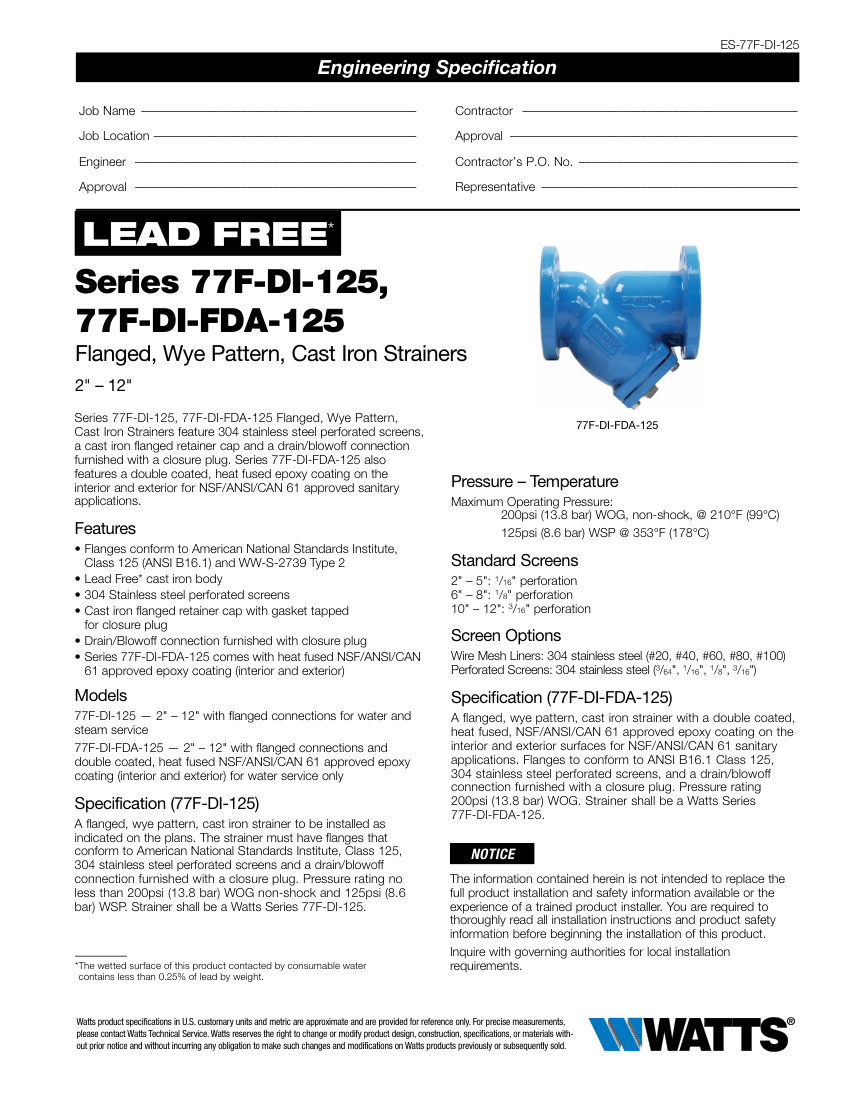

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Flanged Wye Pattern Cast Iron Strainer (Strainers). Model 77F-DI-125, 77F-DI-FDA-125. 304 stainless steel perforated screens with standard perforations from 1/16" to 3/16"; Cast iron flanged retainer cap with gasket tapped for closure plug; Drain/blowoff connection furnished with closure plug; Series 77F-DI-FDA-125 features interior and exterior heat fused epoxy coating for sanitary applications. material: Cast Iron Body, 304 Stainless Steel Screens
Connection size2" – 12"
End connectionFlanged (ANSI B16.1 Class 125)
Pressure Rating200psi (13.8 bar) WOG @ 210°F (99°C); 125psi (8.6
