Watts
Watts Anti-siphon vacuum breaker (Hose Connection Vacuum Breakers). Model Series 8 (8, 8A, 8B, NF8, 8P, 8AC, 8C, 8BC, NF8C, 8FR). Maximum Temperature: 180°F (82°C); Prevents back-siphonage of contaminated water; Not for use under continuous pressure; 8P model is tamper-proof and made of thermoplastic. material: Brass body (except 8P), Stainless steel working parts, Reinforced thermoplastic (8P)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

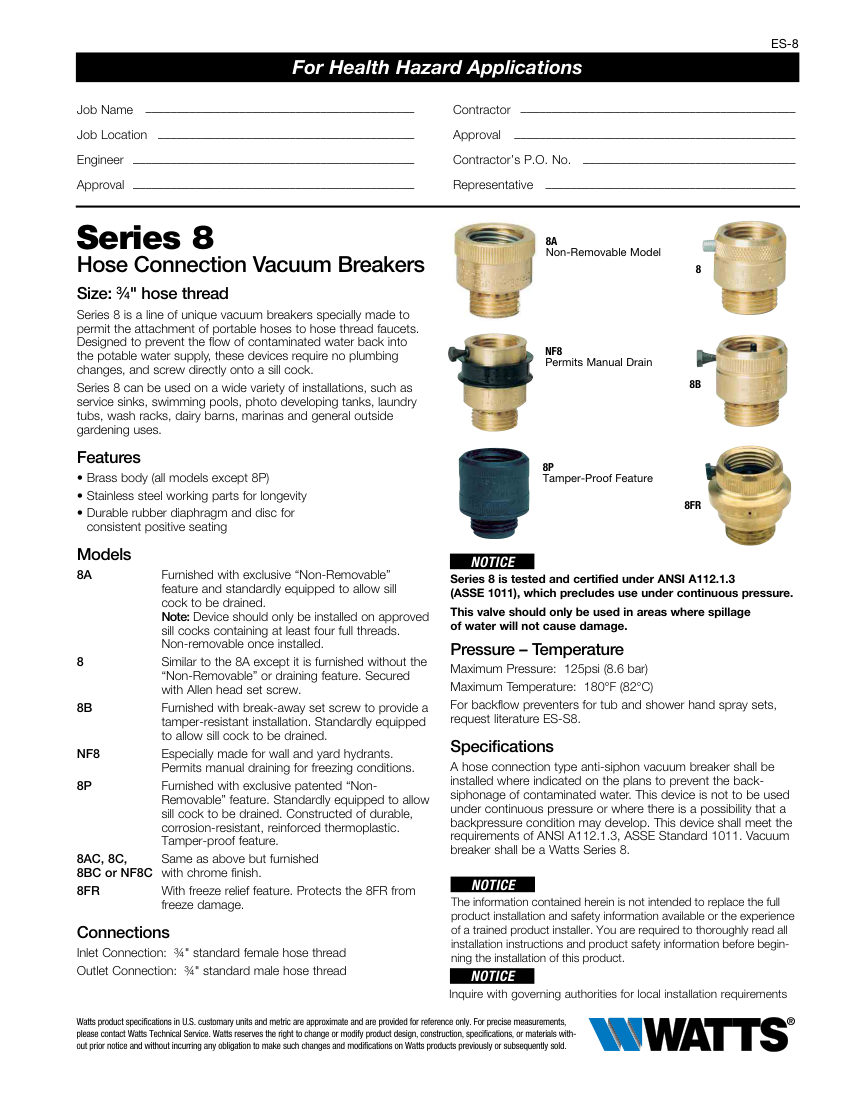

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Anti-siphon vacuum breaker (Hose Connection Vacuum Breakers). Model Series 8 (8, 8A, 8B, NF8, 8P, 8AC, 8C, 8BC, NF8C, 8FR). Maximum Temperature: 180°F (82°C); Prevents back-siphonage of contaminated water; Not for use under continuous pressure; 8P model is tamper-proof and made of thermoplastic. material: Brass body (except 8P), Stainless steel working parts, Reinforced thermoplastic (8P) |
| Connection size | 3/4 inch |
| End connection | Inlet: 3/4" standard female hose thread |
| Outlet | 3/4" standard male |
| Pressure Rating | 125 psi (8.6 bar) |
| Finish | Chrome (8AC, 8C, 8BC, NF8C) |
| Mounting | Screws di |
