Watts

Watts Cast Iron Basket Strainer (Strainers). Model 97FB-CIB. Simplex basket strainer for liquid and steam applications; Angle-designed basket with bolted screen retainer cover; Includes plugged blowdown connection and graphite gasket; Sizes 8" and larger feature a side drain facing the outlet. material: ASTM A-126 Class B cast iron body, 304 perforated stainless steel screen

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

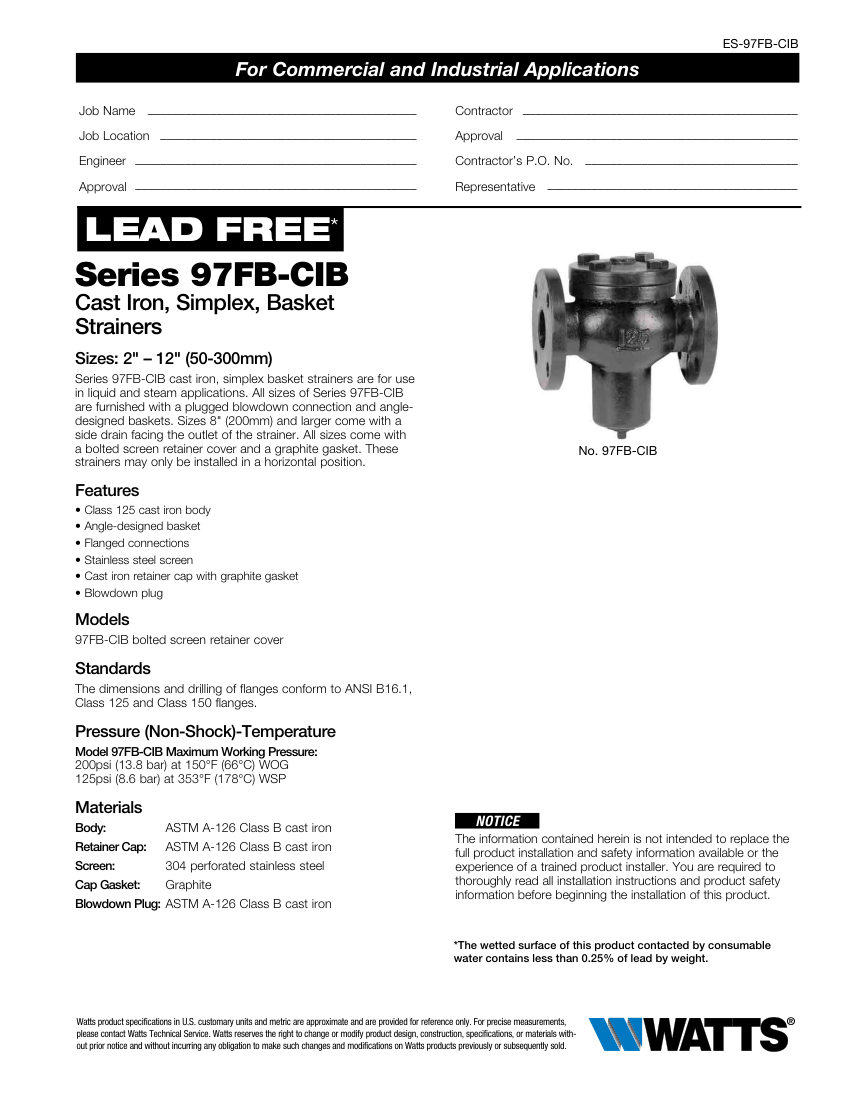

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Cast Iron Basket Strainer (Strainers). Model 97FB-CIB. Simplex basket strainer for liquid and steam applications; Angle-designed basket with bolted screen retainer cover; Includes plugged blowdown connection and graphite gasket; Sizes 8" and larger feature a side drain facing the outlet. material: ASTM A-126 Class B cast iron body, 304 perforated stainless steel screen
Connection size2" – 12" (50-300mm)
End connectionFlanged
Pressure Rating200psi (13.8 bar) at 150°F (66°C) WOG; 125psi (8.6 bar) at 353°F (178°C) WSP
MountingHorizontal position only
ComplianceANSI B16.1, Class
