Watts

Watts Foot Valve (ANKA AFV Series). Model AFV34 US, AFV1 US, AFV114 US, AFV112 US, AFV2 US. Sizes range from ¾" (20mm) to 2" (50mm); Body made of high grade glass fiber reinforced nylon; Includes removable filter screen to avoid large debris intake; Spring loaded design allows installation at any angle. material: Glass Fiber Reinforced Nylon, 316 Stainless Steel, Acetyl, Nitrile Rubber, Polypropylene

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

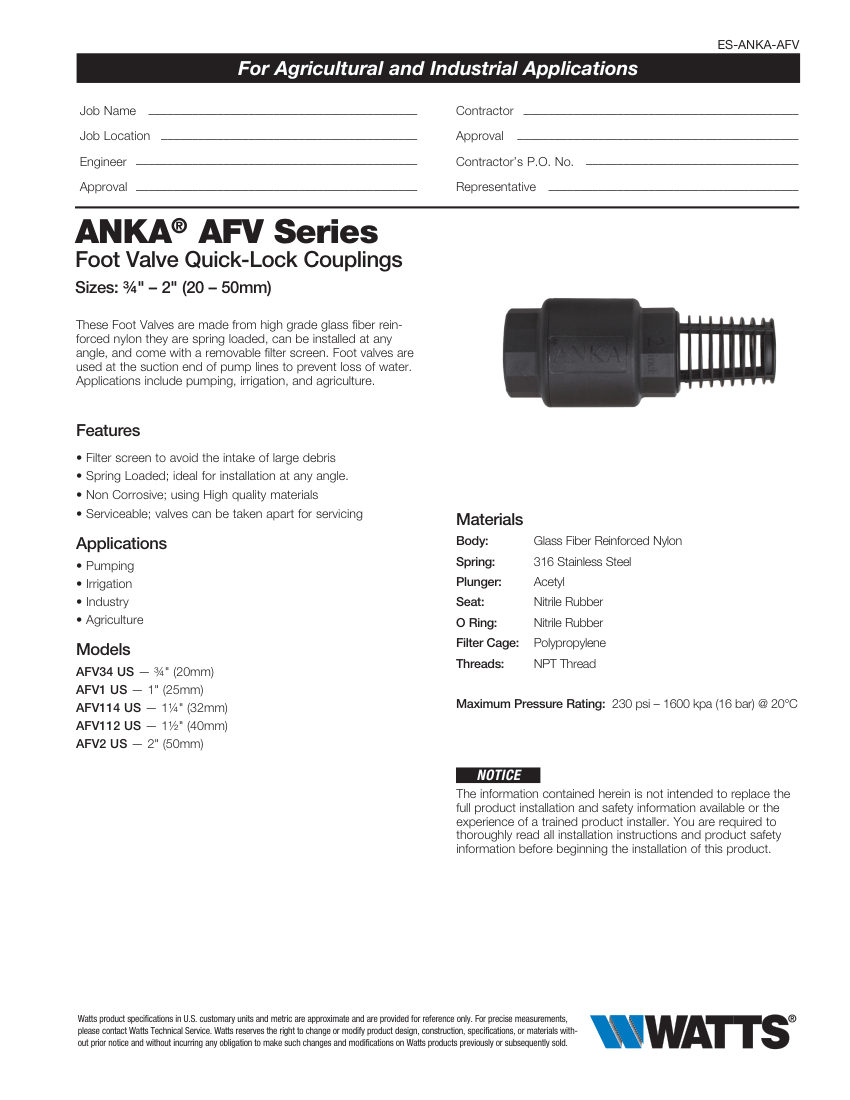

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Foot Valve (ANKA AFV Series). Model AFV34 US, AFV1 US, AFV114 US, AFV112 US, AFV2 US. Sizes range from ¾" (20mm) to 2" (50mm); Body made of high grade glass fiber reinforced nylon; Includes removable filter screen to avoid large debris intake; Spring loaded design allows installation at any angle. material: Glass Fiber Reinforced Nylon, 316 Stainless Steel, Acetyl, Nitrile Rubber, Polypropylene
Connection size¾" – 2" (20 – 50mm)
End connectionNPT Thread
Pressure Rating230 psi – 1600 kpa (16 bar) @ 20°C
MountingSpring loaded, installable at any angle
DimensionsA: 3 3/8" – 5 1/
