Watts Basic Valve (Automatic Control Valve). Model ES-ACV-S100-S1100. Full port, single chamber design with one-piece disc and diaphragm assembly; Available in Globe (S100) and Angle (S1100) patterns; Operating temperature up to 300°F (140°C) with EPDM elastomers; CV factors range from 26 to 4200 depending on size and pattern. material: 316 Stainless Steel (CF8M), 304L Stainless Steel, 316L Stainless Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

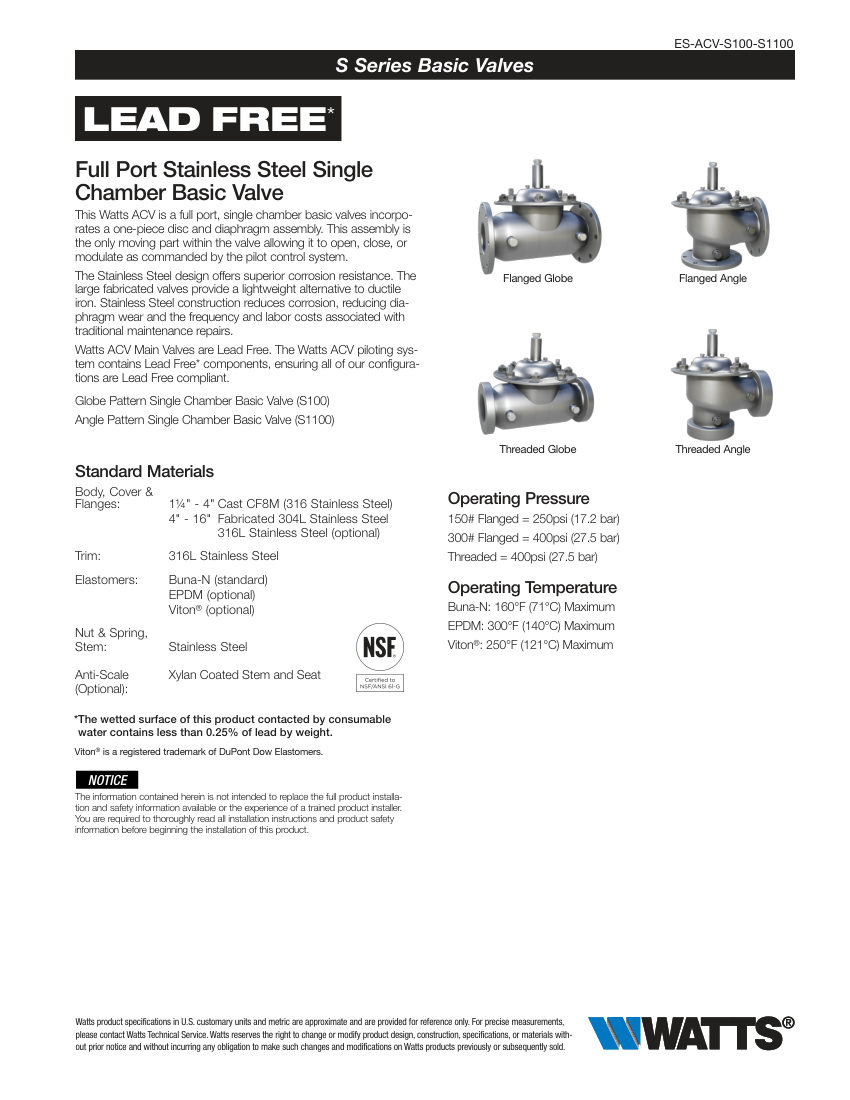

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Basic Valve (Automatic Control Valve). Model ES-ACV-S100-S1100. Full port, single chamber design with one-piece disc and diaphragm assembly; Available in Globe (S100) and Angle (S1100) patterns; Operating temperature up to 300°F (140°C) with EPDM elastomers; CV factors range from 26 to 4200 depending on size and pattern. material: 316 Stainless Steel (CF8M), 304L Stainless Steel, 316L Stainless Steel |
| Connection size | 1-1/4" to 16" |
| End connection | Flanged, Threaded |
| Pressure Rating | 150# Flanged (250psi), 300# Flanged (400psi), Threaded (400psi) |
| Flow Rate | Max Continuous: 95-11100 GPM; Max |
