Watts Steam Ball Valve. Model B-6000-04-SS. 2-piece construction with blow-out proof, pressure retaining stem; Mineral filled PTFE seats and reinforced PTFE stem packing; Standard port design for minimal pressure drop; Quarter turn operation with low operating torque. material: ASTM B-584 Bronze Body, 316 Stainless Steel Ball and Stem
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

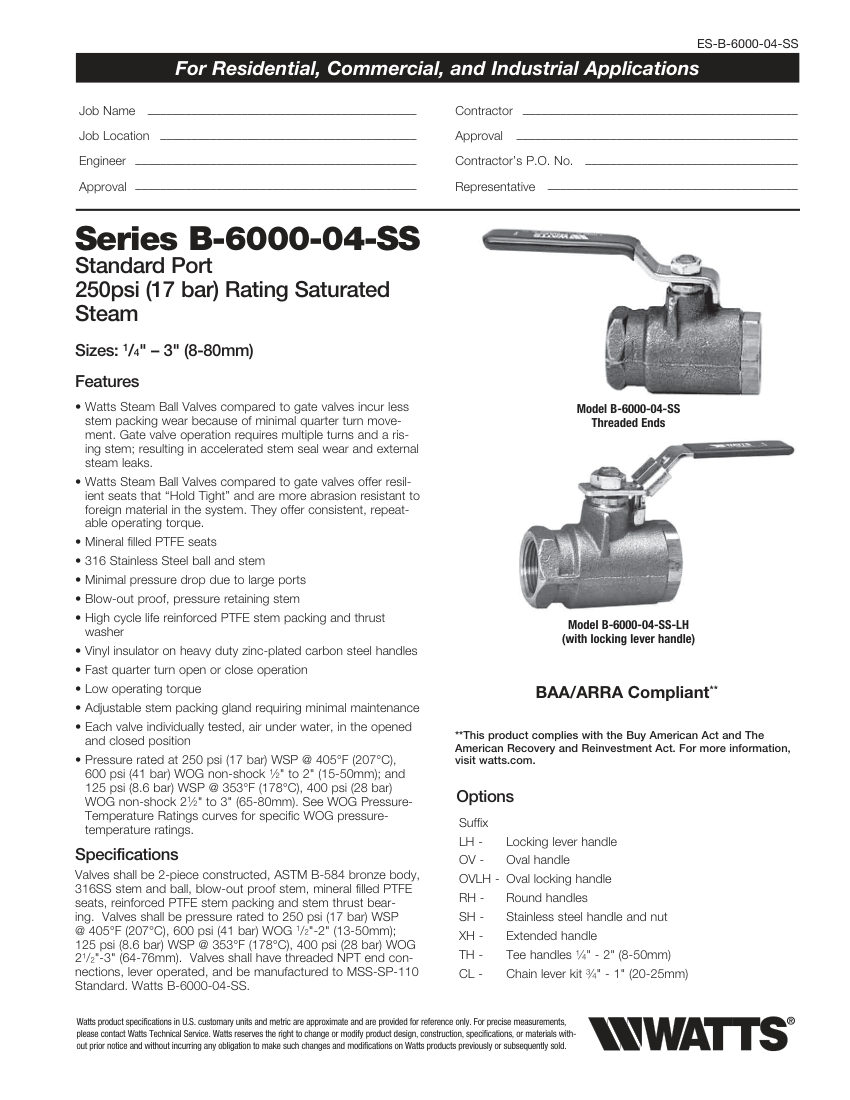

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Steam Ball Valve. Model B-6000-04-SS. 2-piece construction with blow-out proof, pressure retaining stem; Mineral filled PTFE seats and reinforced PTFE stem packing; Standard port design for minimal pressure drop; Quarter turn operation with low operating torque. material: ASTM B-584 Bronze Body, 316 Stainless Steel Ball and Stem |
| Connection size | 1/4" - 3" (8-80mm) |
| End connection | Threaded NPT |
| Pressure Rating | 250 psi (17 bar) WSP @ 405°F (207°C); 600 psi (41 bar) WOG (1/2"-2"); 125 psi (8.6 bar) WSP @ 353°F (178°C); 400 psi (28 bar) WOG (2.5"-3") |
| Compliance | MSS-SP-110, BAA/ARRA. |
