Watts
Watts 2-Piece Full Port Bronze Diverter Ball Valve (Diverter Ball Valves). Model B6780, B6781. Full port orifice design for minimal pressure drop; Blowout proof pressure retaining stem; Virgin PTFE stem packing seal and thrust bearing
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

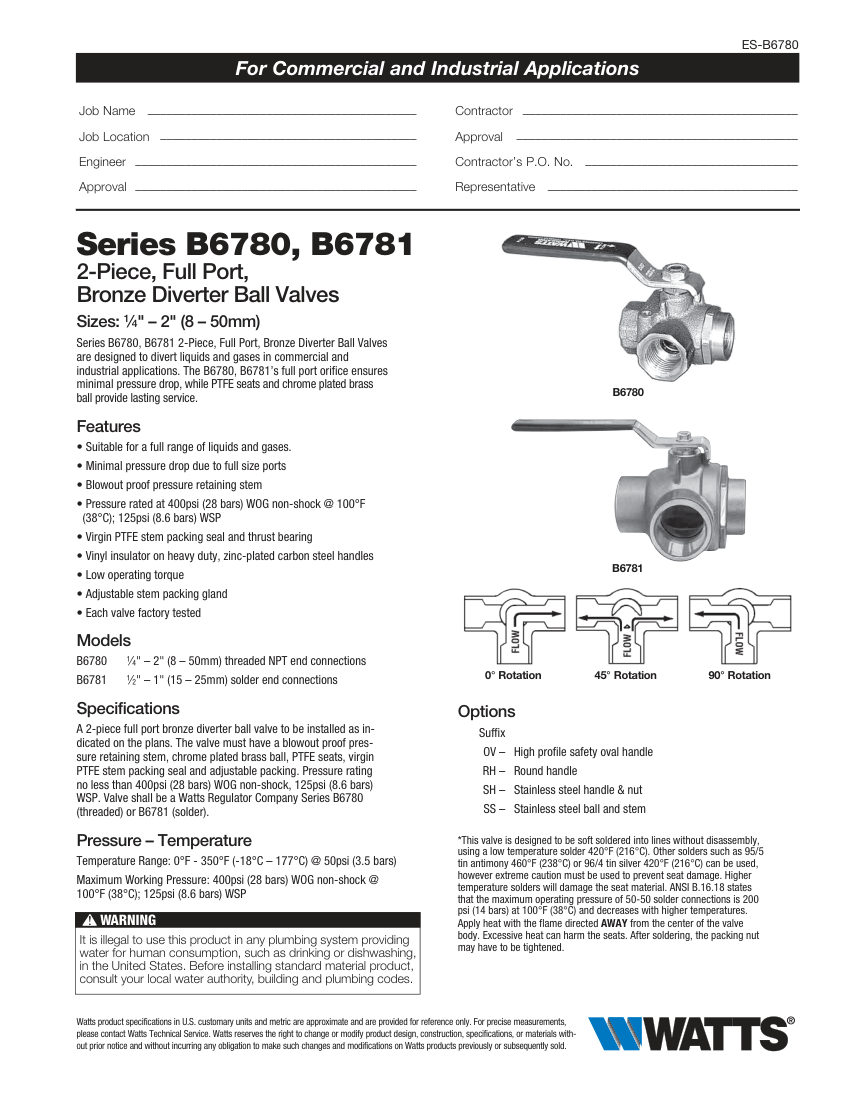

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts 2-Piece Full Port Bronze Diverter Ball Valve (Diverter Ball Valves). Model B6780, B6781. Full port orifice design for minimal pressure drop; Blowout proof pressure retaining stem; Virgin PTFE stem packing seal and thrust bearing |
| Temperature range | 0°F - 350°F (-18°C – 177°C) @ 50psi. material: Bronze body, Chrome plated brass ball, PTFE seats, Zinc-plated carbon steel handles |
| Connection size | 1/4" – 2" (8 – 50mm) for B6780; 1/2" – 1" (15 – 25mm) for B6781 |
| End connection | Threaded NPT (B6780), Solder (B6781) |
| Pressure Rating | 400psi (28 bars) WOG non-shock @ 100°F; 125psi (8.6 bars) WSP |
