Watts

Watts Flow Measurement Valve (Flow Measurement Valves). Model CSM-81-F. Lubricated cylindrical plug design for low operating torque; Provides positive shutoff eliminating need for separate service valve; Features checked metering ports with drip caps for system balancing; Designed for medium to high volume flow rate HVAC units. material: ASTM-A-126 Class B semi-steel body and plug, PTFE stem seal, Brass pressure taps

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

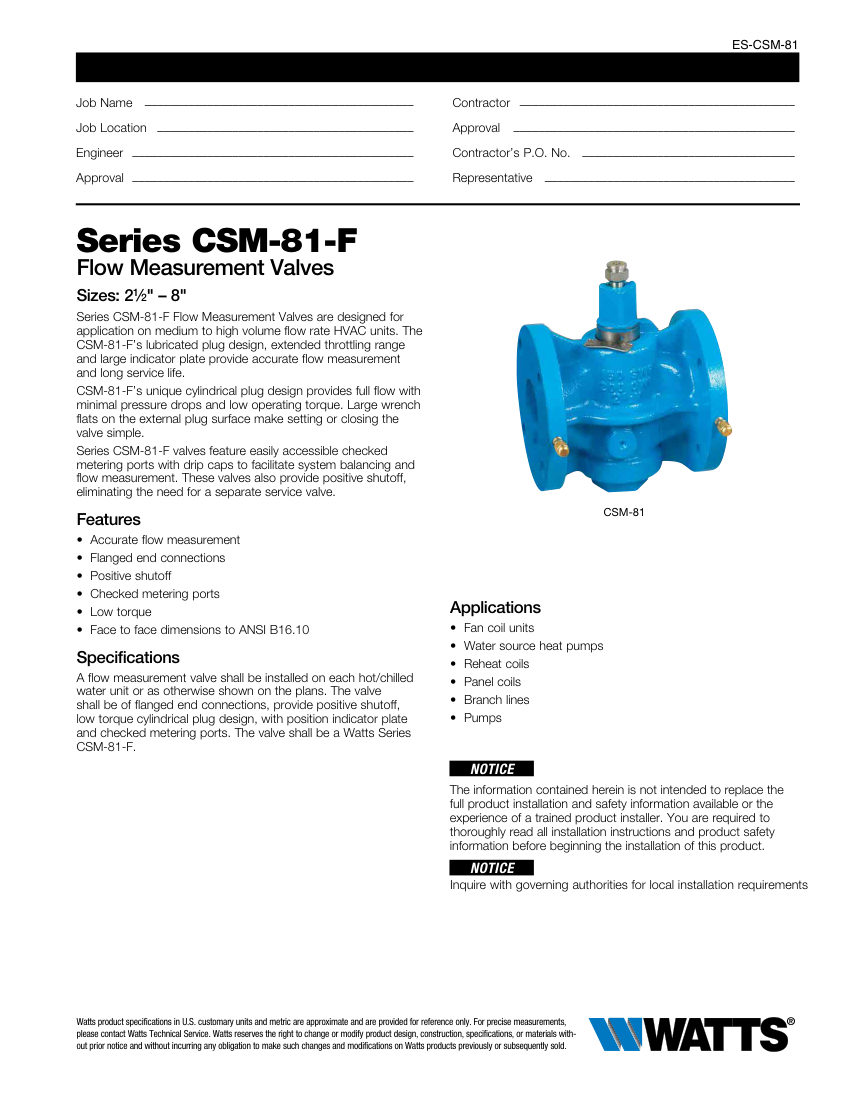

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Flow Measurement Valve (Flow Measurement Valves). Model CSM-81-F. Lubricated cylindrical plug design for low operating torque; Provides positive shutoff eliminating need for separate service valve; Features checked metering ports with drip caps for system balancing; Designed for medium to high volume flow rate HVAC units. material: ASTM-A-126 Class B semi-steel body and plug, PTFE stem seal, Brass pressure taps
Connection size2.5" – 8"
End connectionFlanged
Pressure Rating175 psi (12 bar) max working pressure
MountingFace to face dimensions to ANSI B16.10
ComplianceANSI B16.1
