DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Name: Watts
Brand: Watts

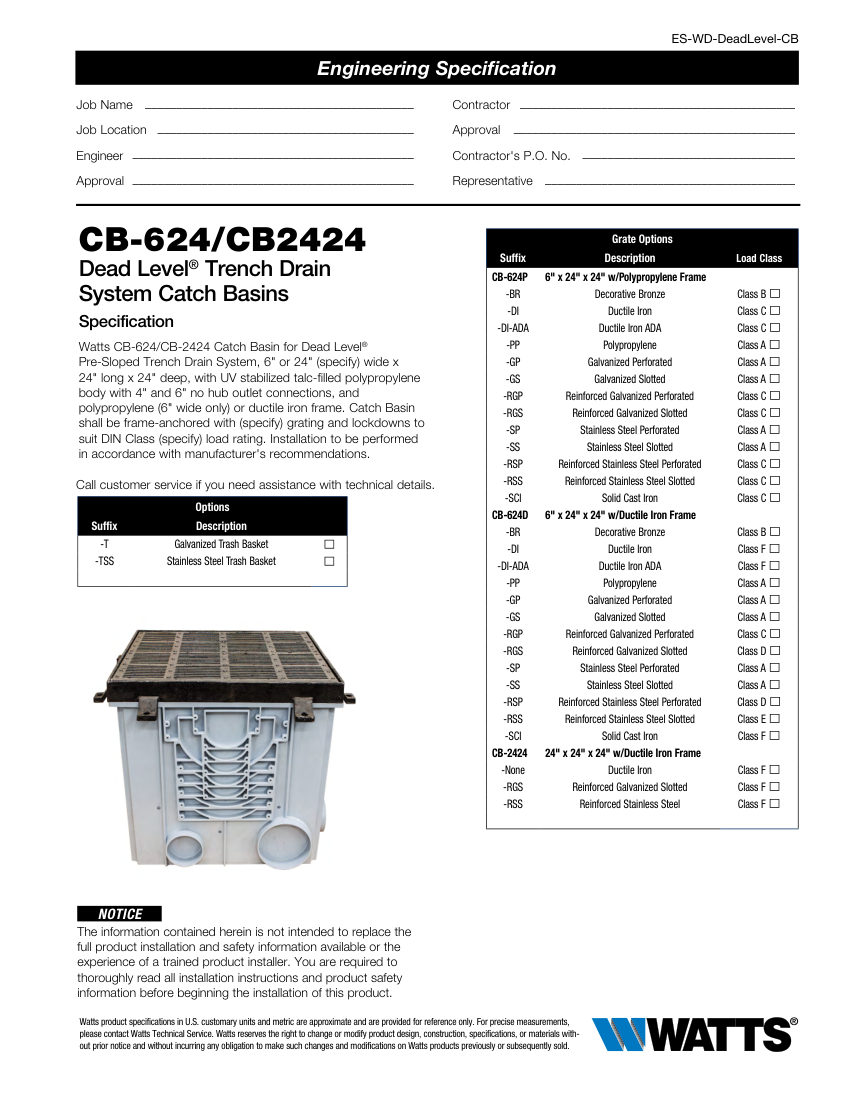

Watts Catch Basin (Trench Drain). Model CB-624/CB-2424. Dimensions: 6" or 24" wide x 24" long x 24" deep

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Watts Catch Basin (Trench Drain). Model CB-624/CB-2424. Dimensions: 6" or 24" wide x 24" long x 24" deep
Body Material	UV stabilized talc-filled polypropylene
Outlet Connections	4" and 6" no hub
Frame Options	Polypropylene (6" wide only) or Ductile Iron. material: UV stabilized talc-filled polypropylene body, polypropylene or ductile iron frame
Connection size	4" and 6" no hub outlet
End connection	No hub
Finish	Polypropylene, Ductile Iron, Decorative Bronze, Galvanized, Stainless Steel, Solid Cast Iron
Mounting	Frame-anchored with grating and lockdowns
Dimensions	6" or 24" wide
