Watts
Watts 2-Piece Full Port Brass Ball Valve (Ball Valves). Model FBV-3 / FBVS-3. Bottom-loaded blowout-proof stem; Full port design for minimal pressure drop; Suitable for liquids and gases; Quarter-turn operation. material: Forged brass body, chrome plated brass ball, virgin PTFE seats and stem packing, zinc plated carbon steel handle
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

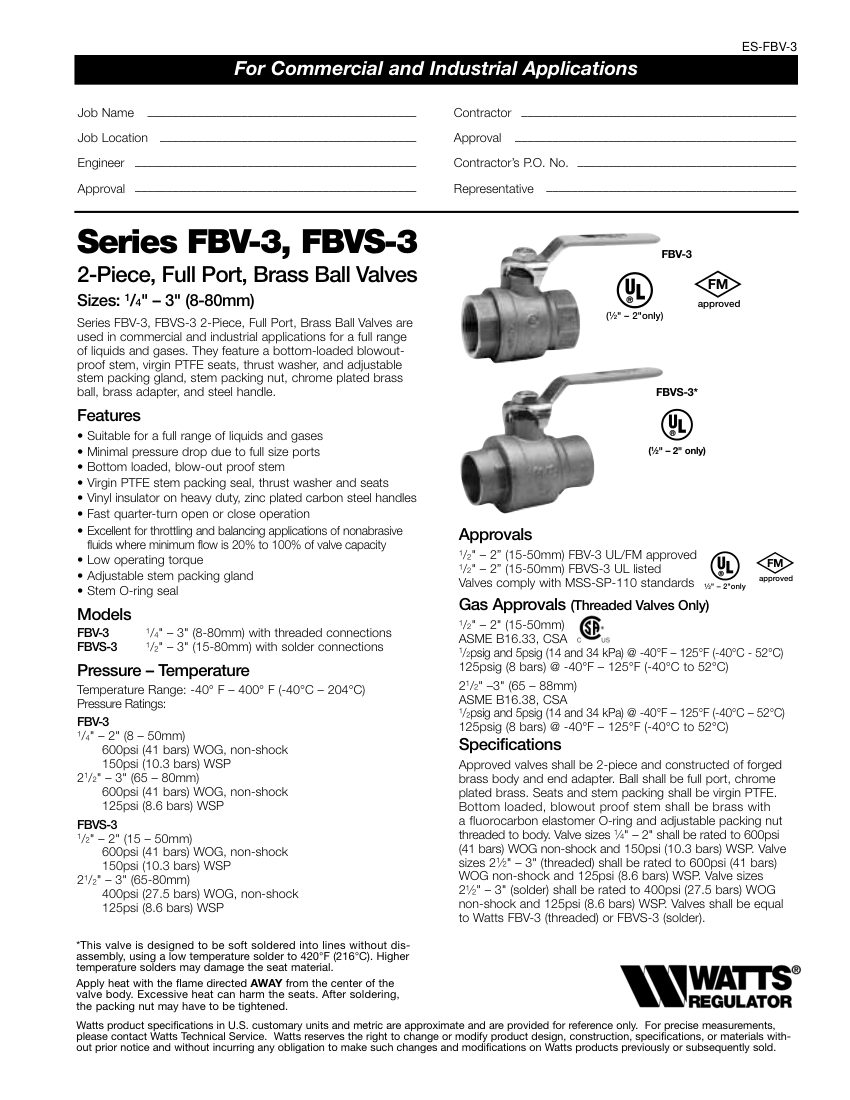

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts 2-Piece Full Port Brass Ball Valve (Ball Valves). Model FBV-3 / FBVS-3. Bottom-loaded blowout-proof stem; Full port design for minimal pressure drop; Suitable for liquids and gases; Quarter-turn operation. material: Forged brass body, chrome plated brass ball, virgin PTFE seats and stem packing, zinc plated carbon steel handle |
| Connection size | 1/4" – 3" (8-80mm) |
| End connection | Threaded (FBV-3) or Solder (FBVS-3) |
| Pressure Rating | 600psi WOG non-shock (1/4"-2"), 400psi WOG non-shock (2.5"-3" solder), 150psi WSP (1/4"-2"), 125psi WSP (2.5"-3") |
| Finish | Chrome plated ball, zinc plated handl |
