DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts 2-Piece Full Port Brass Ball Valve (Ball Valves). Model FBV-3C-SS, FBVS-3C-SS. Bottom-loaded blowout-proof stem; Quarter-turn open/close operation; Suitable for liquids and gases

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

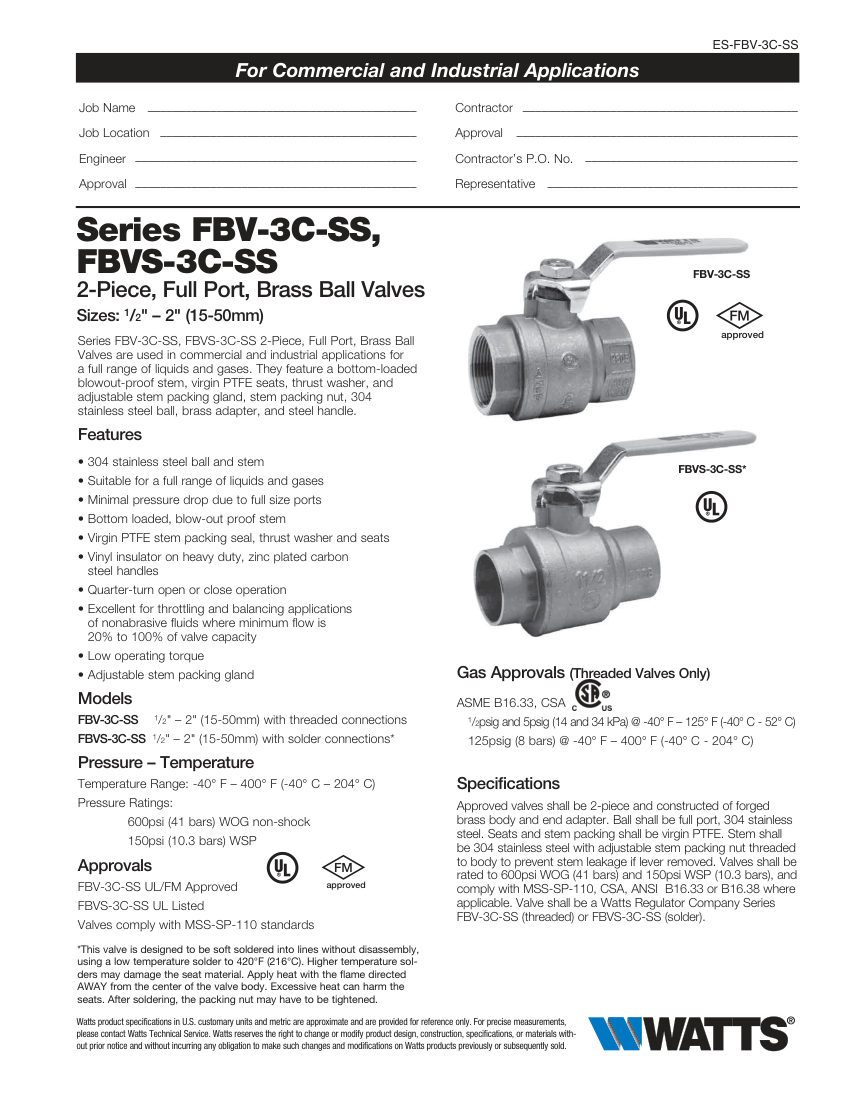

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts 2-Piece Full Port Brass Ball Valve (Ball Valves). Model FBV-3C-SS, FBVS-3C-SS. Bottom-loaded blowout-proof stem; Quarter-turn open/close operation; Suitable for liquids and gases
Temperature range-40°F to 400°F (-40°C to 204°C). material: Forged brass body, 304 stainless steel ball and stem, virgin PTFE seats
Connection size1/2" – 2" (15-50mm)
End connectionThreaded (FBV-3C-SS) or Solder (FBVS-3C-SS)
Pressure Rating600psi (41 bars) WOG non-shock, 150psi (10.3 bars) WSP
FinishZinc plated carbon steel handle with vinyl insulator
ComplianceMSS-SP-110, UL/FM Approved (FBV), UL
