DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Floor Drain. Model FD-1100-L. Includes adjustable heavy duty square heel proof stainless steel strainer; Features reversible clamping collar with primary & secondary weepholes; Available in 2", 3", 4", and 6" pipe sizes; Load rating is XHD (Extra Heavy Duty). material: Epoxy coated cast iron body, stainless steel strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

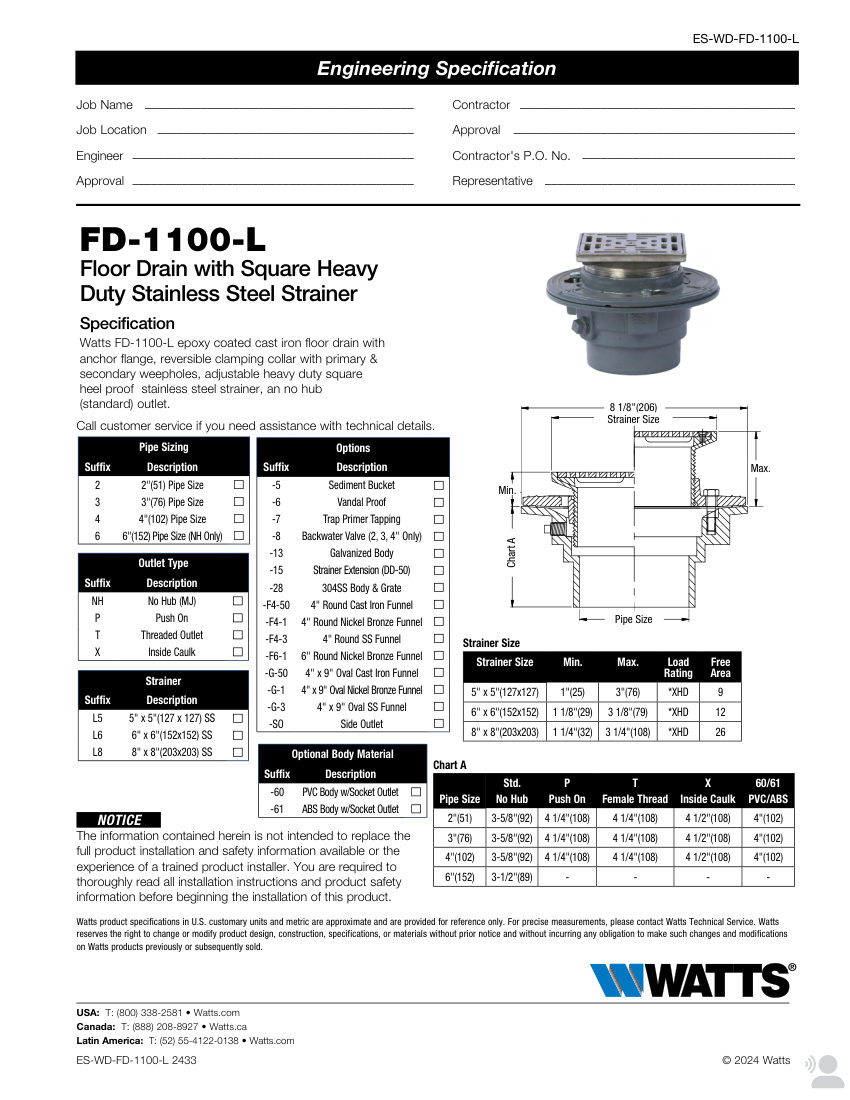

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Floor Drain. Model FD-1100-L. Includes adjustable heavy duty square heel proof stainless steel strainer; Features reversible clamping collar with primary & secondary weepholes; Available in 2", 3", 4", and 6" pipe sizes; Load rating is XHD (Extra Heavy Duty). material: Epoxy coated cast iron body, stainless steel strainer
Connection size2" (51), 3" (76), 4" (102), 6" (152)
End connectionNo Hub (MJ), Push On, Threaded, Inside Caulk
FinishEpoxy coated
MountingAnchor flange, reversible clamping collar
DimensionsStrainer sizes: 5"x5" (127x127), 6"x6" (152x152), 8"x8" (203x203).
