Watts

Watts Bronze Globe Valve (Globe Valves). Model Series GLV. Rising stem design; Threaded IPS bonnet; Bronze disc and body; Suitable for water, steam, oil, or compressed gas. material: ASTM B-584 Bronze (Body, Bonnet, Disc), Brass (Stem, Lock Nut, Packing Nut, Gland, Wheel Nut), Teflon (Gland Packing), Cast Iron (Hand Wheel)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

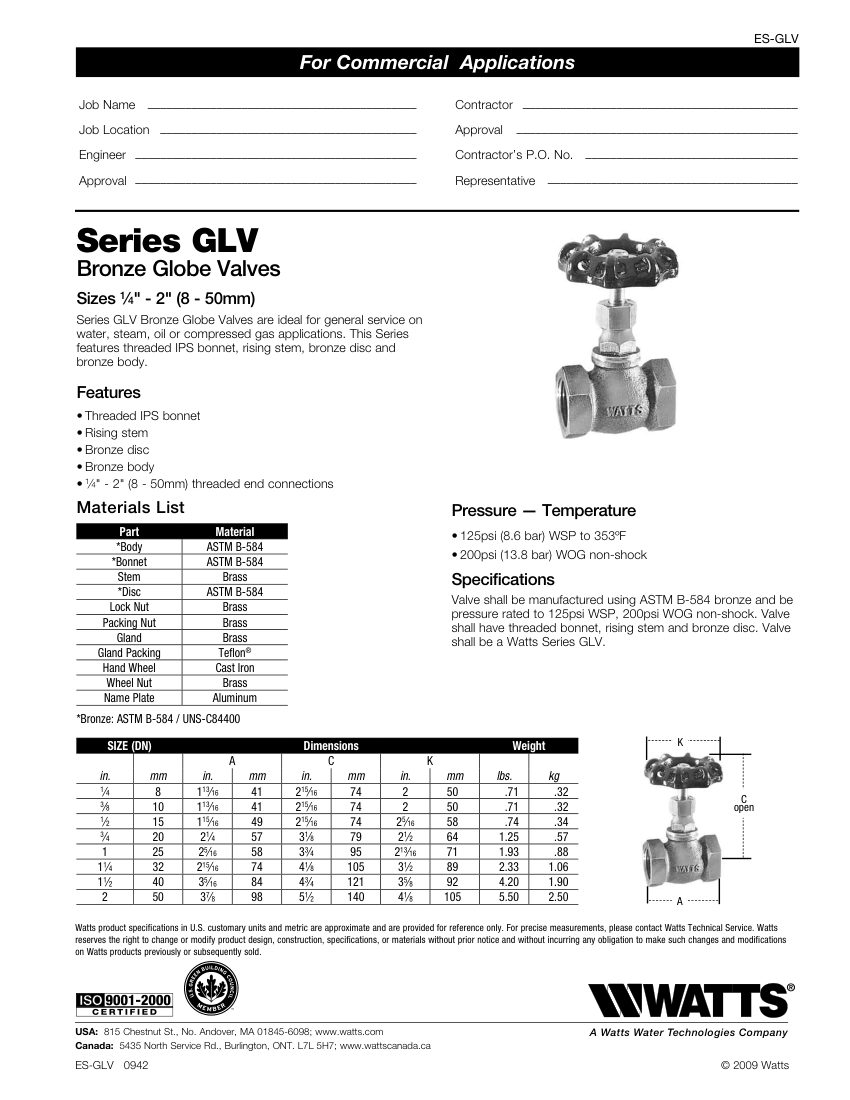

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Bronze Globe Valve (Globe Valves). Model Series GLV. Rising stem design; Threaded IPS bonnet; Bronze disc and body; Suitable for water, steam, oil, or compressed gas. material: ASTM B-584 Bronze (Body, Bonnet, Disc), Brass (Stem, Lock Nut, Packing Nut, Gland, Wheel Nut), Teflon (Gland Packing), Cast Iron (Hand Wheel)
Connection size1/4" - 2" (8 - 50mm)
End connectionThreaded IPS
Pressure Rating125psi (8.6 bar) WSP to 353ºF; 200psi (13.8 bar) WOG non-shock
DimensionsSee dimension table (e.g., 1/4" size: A=1 13/16", C=2 15/16", K=2")
ComplianceASTM B-584 / UNS-C84400.
