DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Bronze Gate Valve (Watts Series GV). Model GV. Non-rising stem design; Threaded IPS bonnet; Suitable for water, steam, oil, or compressed gas; Gland packing is Teflon. material: ASTM B-584 Bronze (Body, Bonnet, Disc), Brass (Stem, Lock Nut, Packing Nut, Gland, Wheel Nut), Teflon (Gland Packing), Cast Iron (Hand Wheel)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

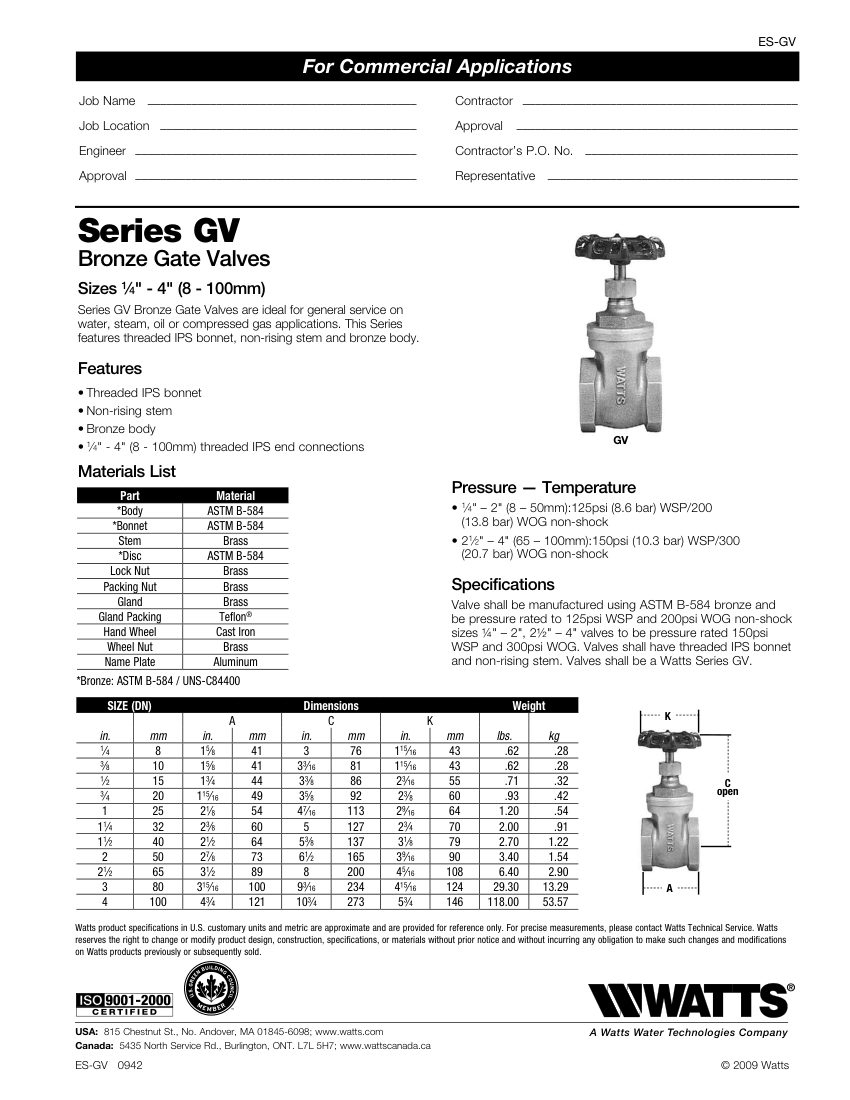

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Bronze Gate Valve (Watts Series GV). Model GV. Non-rising stem design; Threaded IPS bonnet; Suitable for water, steam, oil, or compressed gas; Gland packing is Teflon. material: ASTM B-584 Bronze (Body, Bonnet, Disc), Brass (Stem, Lock Nut, Packing Nut, Gland, Wheel Nut), Teflon (Gland Packing), Cast Iron (Hand Wheel)
Connection size1/4" - 4" (8 - 100mm)
End connectionThreaded IPS
Pressure Rating1/4"-2": 125psi WSP / 200psi WOG non-shock; 2.5"-4": 150psi WSP / 300psi WOG non-shock
DimensionsSee size chart (e.g., 1/4" A=1 5/8", C=3", K=1 15/16")
ComplianceASTM B-584.
