Watts Hot Water Angle Valve (Angle Valves). Model HWA. Constructed of heavy duty bronze; For use on gravity (hot water) heating systems only; Features Teflon stem packing and bronze disc; Available in Threaded x Male Union (TxTMU) and Sweat x Male Union (CxTMU) configurations. material: Bronze ASTM B584 C84400 (Body/Bonnet), Brass ASTM B16 C36000 (Stem), Teflon (Packing)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

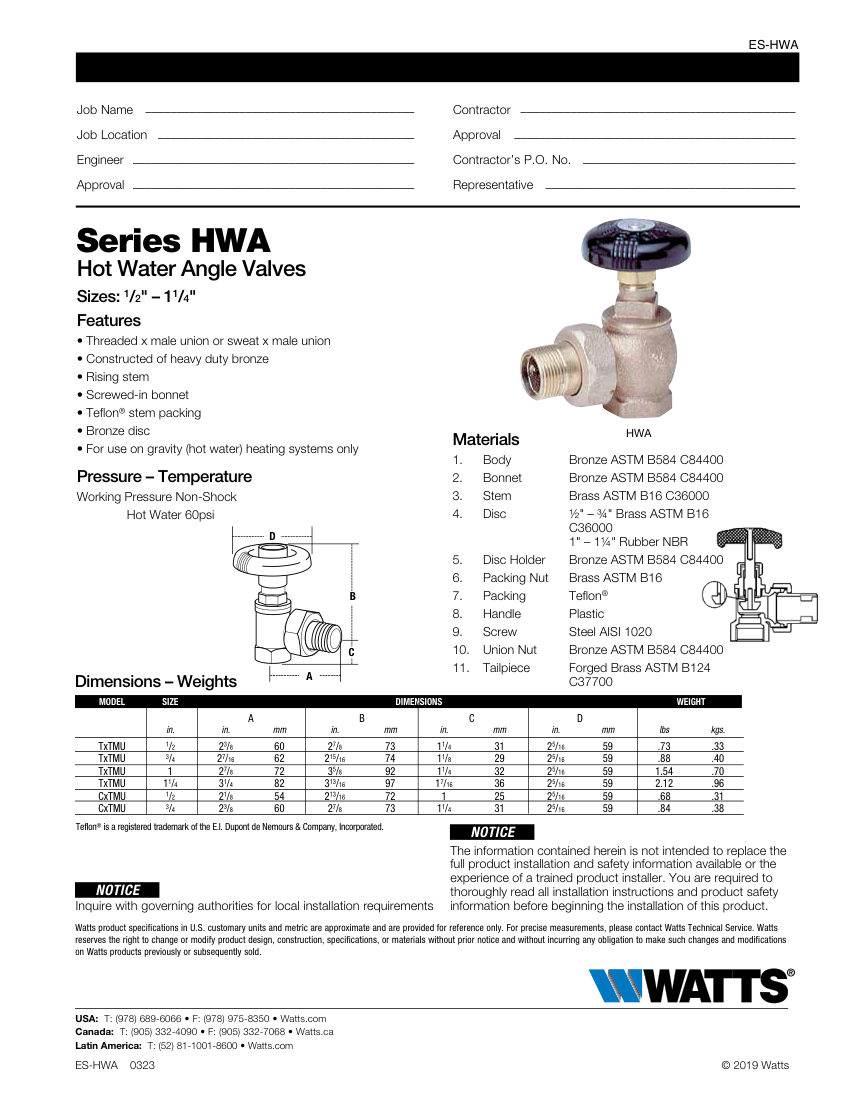

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Hot Water Angle Valve (Angle Valves). Model HWA. Constructed of heavy duty bronze; For use on gravity (hot water) heating systems only; Features Teflon stem packing and bronze disc; Available in Threaded x Male Union (TxTMU) and Sweat x Male Union (CxTMU) configurations. material: Bronze ASTM B584 C84400 (Body/Bonnet), Brass ASTM B16 C36000 (Stem), Teflon (Packing)
Connection size1/2" – 1 1/4"
End connectionThreaded x Male Union or Sweat x Male Union
Pressure Rating60 psi (Hot Water)
MountingRising stem, Screwed-in bonnet
DimensionsVaries by size (e.g., 1/2" TxTMU: A=2 3/8",
