DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LF123LP. Adjustable reduced pressure range: 10 – 30psi (69 – 207 kPa); Standard reduced pressure setting: 30psi (207 kPa)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

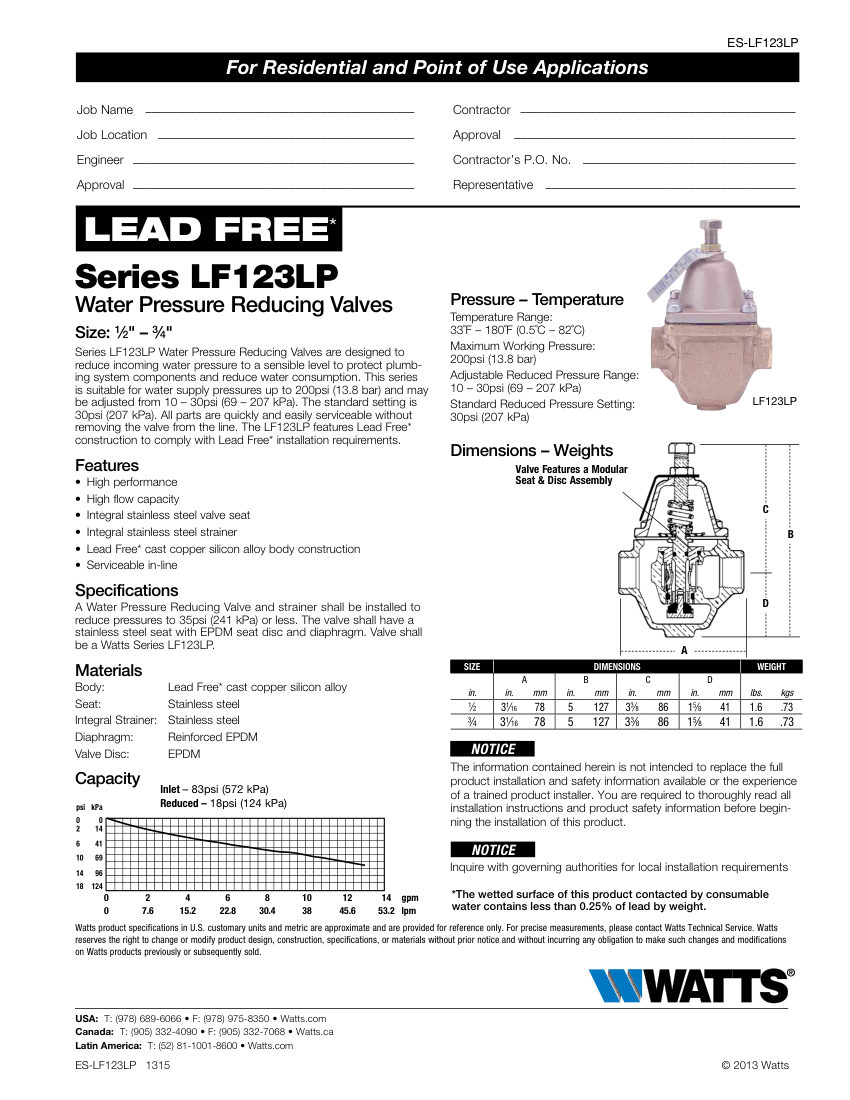

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LF123LP. Adjustable reduced pressure range: 10 – 30psi (69 – 207 kPa); Standard reduced pressure setting: 30psi (207 kPa)
Temperature range33˚F – 180˚F (0.5˚C – 82˚C); Features integral stainless steel strainer and valve seat. material: Lead Free cast copper silicon alloy body, stainless steel seat and strainer, EPDM diaphragm and disc
Connection size1/2" – 3/4"
Pressure Rating200psi (13.8 bar)
MountingIn-line
DimensionsA: 3 1/16 in (78 mm), B: 5 in (127 mm), C: 3 3/8 in (86 mm), D: 1 5/8 in (41 mm); compl
