Watts
Watts Water Hammer Arrestor. Model LF15. Pre-charged air chamber permanently sealed from water system; Factory air pre-load is 60 psi (422 kPa); Operating temperature range: 33°F to 180°F (0.5°C to 82°C); Not rechargeable in the field. material: Hard drawn copper body, Lead Free brass piston/adapter/cap, EPDM seals
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

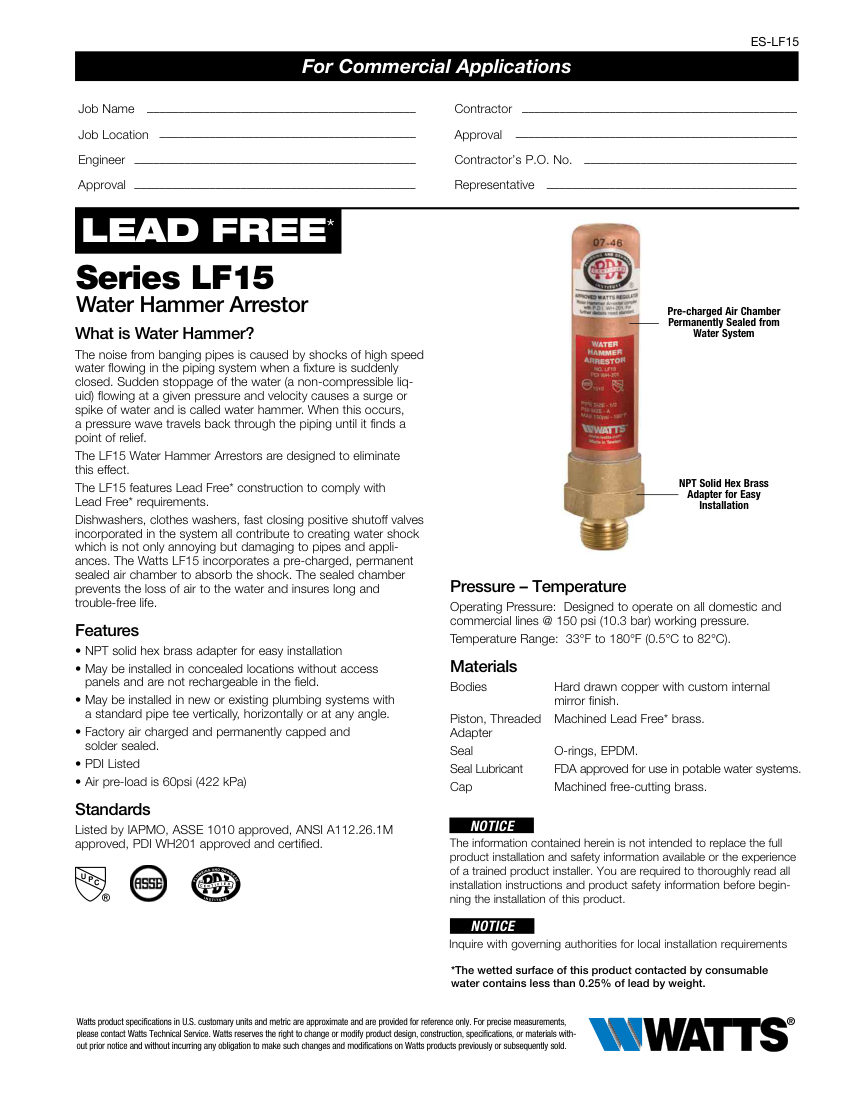

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Water Hammer Arrestor. Model LF15. Pre-charged air chamber permanently sealed from water system; Factory air pre-load is 60 psi (422 kPa); Operating temperature range: 33°F to 180°F (0.5°C to 82°C); Not rechargeable in the field. material: Hard drawn copper body, Lead Free brass piston/adapter/cap, EPDM seals |
| End connection | NPT solid hex brass adapter |
| Pressure Rating | 150 psi (10.3 bar) working pressure |
| Finish | Custom internal mirror finish |
| Mounting | Vertical, horizontal, or any angle via standard pipe tee |
| Compliance | IAPMO, ASSE 1010, ANSI A112.26.1M, PDI WH201, Lead Free. |
