Watts

Name: Watts
Brand: Watts

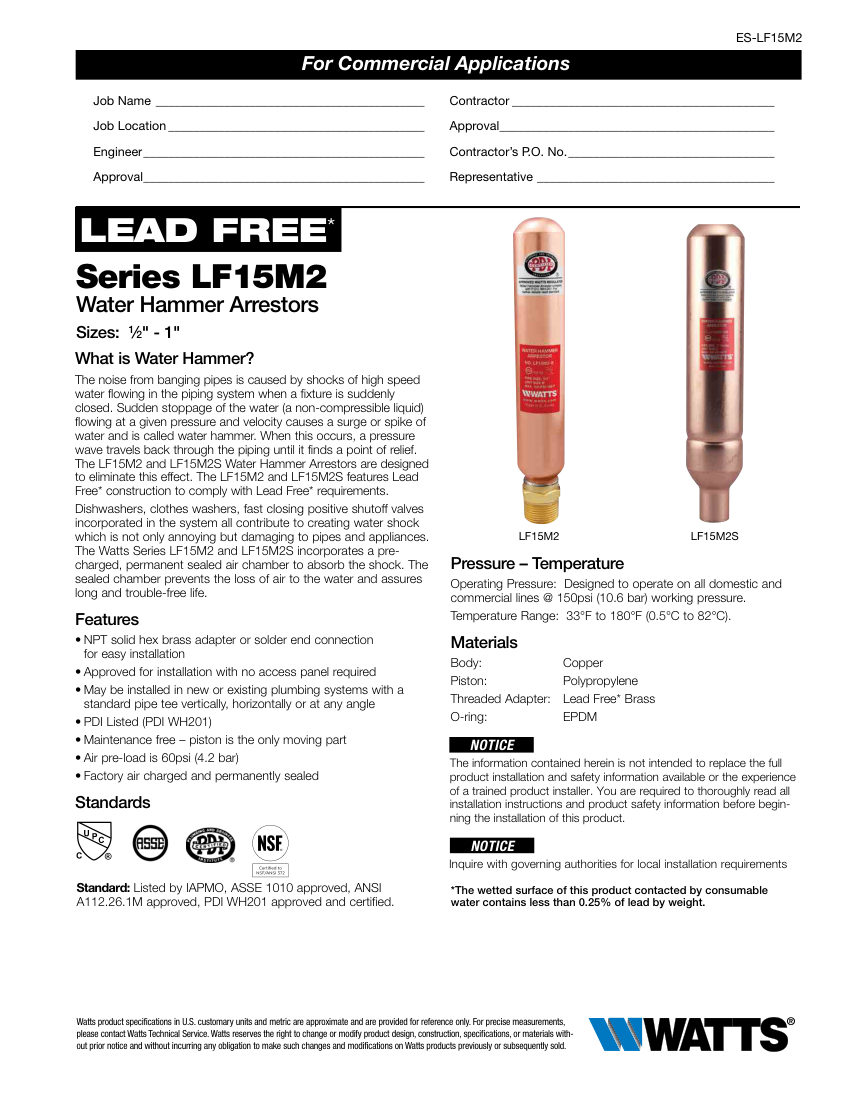

Watts Water Hammer Arrestor (Water Hammer Arrestors). Model LF15M2. Pre-charged, permanent sealed air chamber; Factory air charged at 60psi (4.2 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Watts Water Hammer Arrestor (Water Hammer Arrestors). Model LF15M2. Pre-charged, permanent sealed air chamber; Factory air charged at 60psi (4.2 bar)
Temperature range	33°F to 180°F (0.5°C to 82°C); Maintenance free with piston as only moving part. material: Copper body, Lead Free Brass adapter, Polypropylene piston, EPDM O-ring
Connection size	1/2" - 1"
End connection	NPT solid hex brass adapter or solder end
Pressure Rating	150psi (10.6 bar) working pressure
Mounting	Vertical, horizontal, or any angle via standard pipe tee
Compliance	IAPMO, ASSE 1010, ANSI A112.26.1M, PDI WH201, Lea
