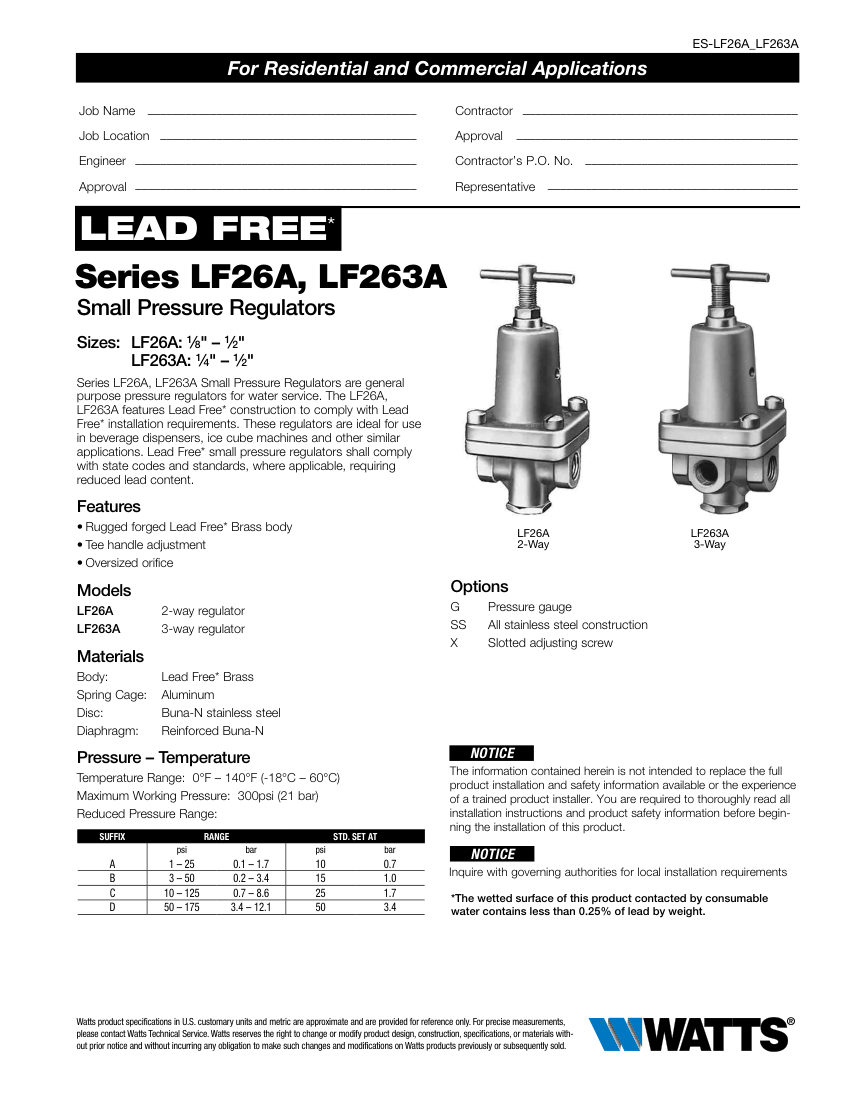

Watts Small Pressure Regulator (Pressure Regulators). Model LF26A, LF263A. 2-way (LF26A) and 3-way (LF263A) configurations

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Watts Small Pressure Regulator (Pressure Regulators). Model LF26A, LF263A. 2-way (LF26A) and 3-way (LF263A) configurations
Temperature Range	0°F – 140°F (-18°C – 60°C); Tee handle adjustment with oversized orifice
Weight	1 lb (0.45 kg). material: Lead Free Brass body, Aluminum spring cage, Buna-N stainless steel disc, Reinforced Buna-N diaphragm
Connection size	1/8" – 1/2"
Pressure Rating	Max Working Pressure: 300psi (21 bar)
Reduced Pressure Range	1-175psi (0.1-12.1 bar)
Flow Rate	Up to 7 gpm (27 lpm) at 50psi reduced pressure
Dimensions	A: 2 1/8 in (54 mm), C: 4 3/8 in (111 mm); c
