Watts V-Pattern Threaded Strainer (Strainers). Model LF27. V-pattern design for protecting system components from debris; Sizes available from 1/8 inch to 1/2 inch; Maximum working pressure of 250 psi (17.2 bar) CWP; Includes Lead Free* brass retainer cap with gasket. material: Lead Free* Cast copper silicon alloy body, Lead Free* Brass retainer cap, Stainless Steel screen
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

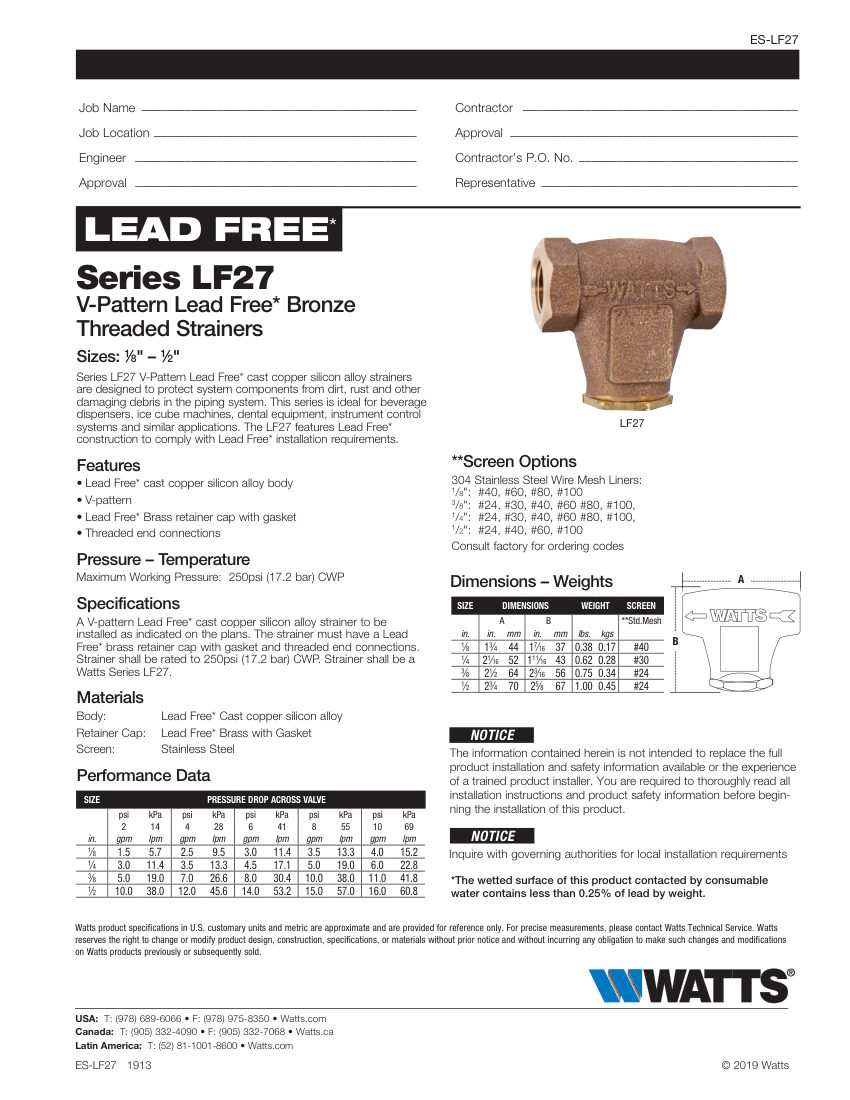

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts V-Pattern Threaded Strainer (Strainers). Model LF27. V-pattern design for protecting system components from debris; Sizes available from 1/8 inch to 1/2 inch; Maximum working pressure of 250 psi (17.2 bar) CWP; Includes Lead Free* brass retainer cap with gasket. material: Lead Free* Cast copper silicon alloy body, Lead Free* Brass retainer cap, Stainless Steel screen |
| Connection size | 1/8" – 1/2" |
| End connection | Threaded |
| Pressure Rating | 250psi (17.2 bar) CWP |
| Dimensions | 1/8": 1-3/4" x 1-7/16"; 1/4": 2-1/16" x 1-11/16"; 3/8": 2-1/2" x 2-3/16"; 1/2": 2-3/4" x 2-5/8" |
| Compliance | Lead Free |
