DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Dielectric Union (Dielectric Unions). Model LF3001A. Sizes range from 1/2 inch to 2 inch; Maximum temperature 180°F (82°C) with standard gasket A; Maximum temperature 300°F (149°C) with optional gasket B; Insulator material is Polysulfone. material: Lead Free Brass, Steel, Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

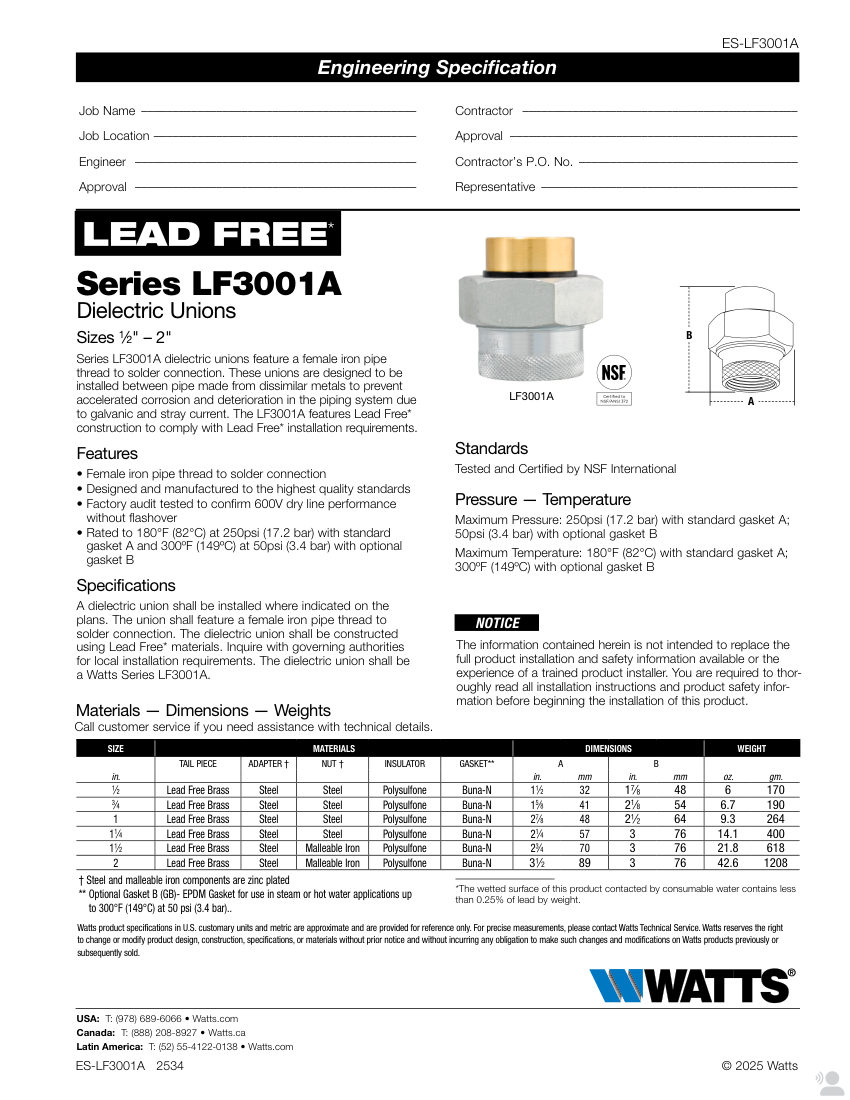

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3001A. Sizes range from 1/2 inch to 2 inch; Maximum temperature 180°F (82°C) with standard gasket A; Maximum temperature 300°F (149°C) with optional gasket B; Insulator material is Polysulfone. material: Lead Free Brass, Steel, Polysulfone, Buna-N
Connection size1/2" – 2"
End connectionFemale iron pipe thread to solder
Pressure Rating250psi (17.2 bar) with standard gasket A; 50psi (3.4 bar) with optional gasket B
FinishZinc plated (steel and malleable iron components)
DimensionsVaries by size (e.g., 1/2": A=1.5in, B=1.875in).
