DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Dielectric Union (Dielectric Unions). Model LF3004. Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested for 600V dry line performance without flashover; Lead Free construction with wetted surfaces containing less than 0.25% lead; Designed to prevent accelerated corrosion due to galvanic and stray current. material: Steel, Malleable Iron, Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

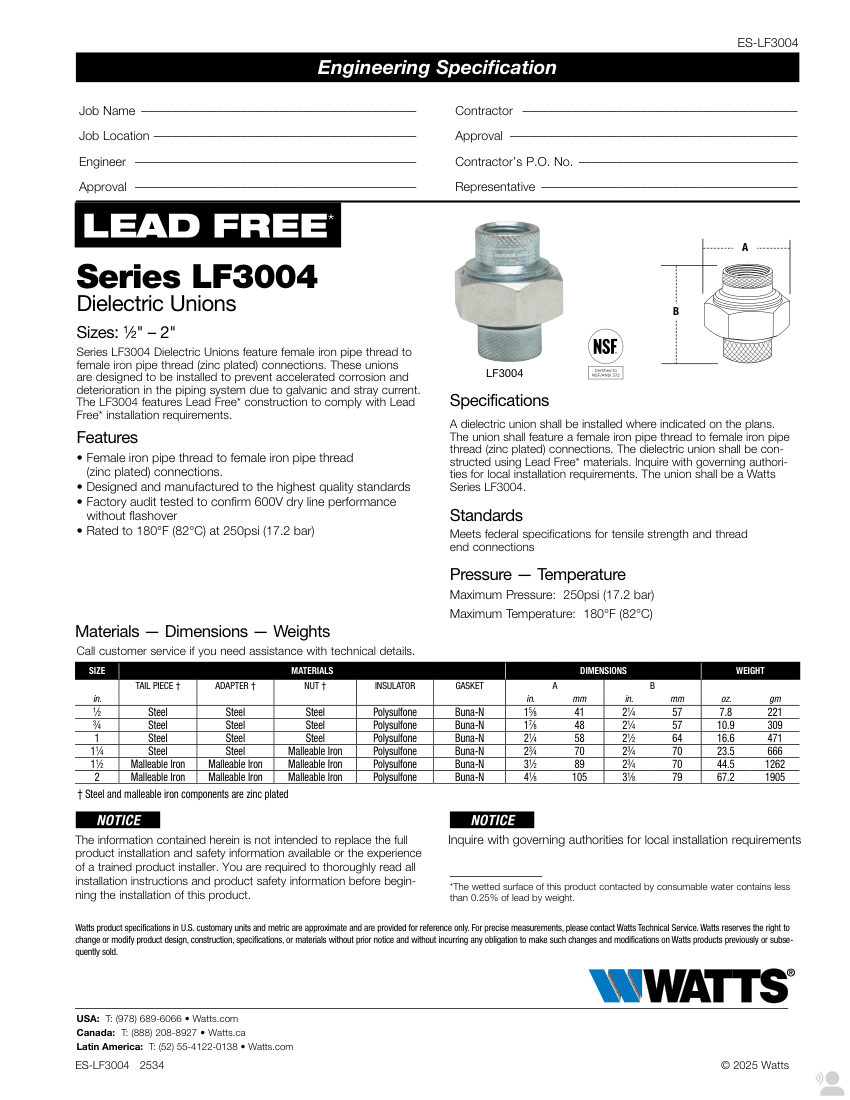

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3004. Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested for 600V dry line performance without flashover; Lead Free construction with wetted surfaces containing less than 0.25% lead; Designed to prevent accelerated corrosion due to galvanic and stray current. material: Steel, Malleable Iron, Polysulfone, Buna-N
Connection size1/2" – 2"
End connectionFemale iron pipe thread to female iron pipe thread (zinc plated)
Pressure Rating250psi (17.2 bar)
FinishZinc plated
DimensionsVaries by size (e.g., 1/2": 15/8" x 21/4").
