DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Dielectric Union (Dielectric Unions). Model LF3006. Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested to confirm 600V dry line performance without flashover; Designed to prevent galvanic corrosion between dissimilar metals; Optional EPDM gasket available for steam or hot water applications up to 300°F. material: Steel, Malleable Iron, Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

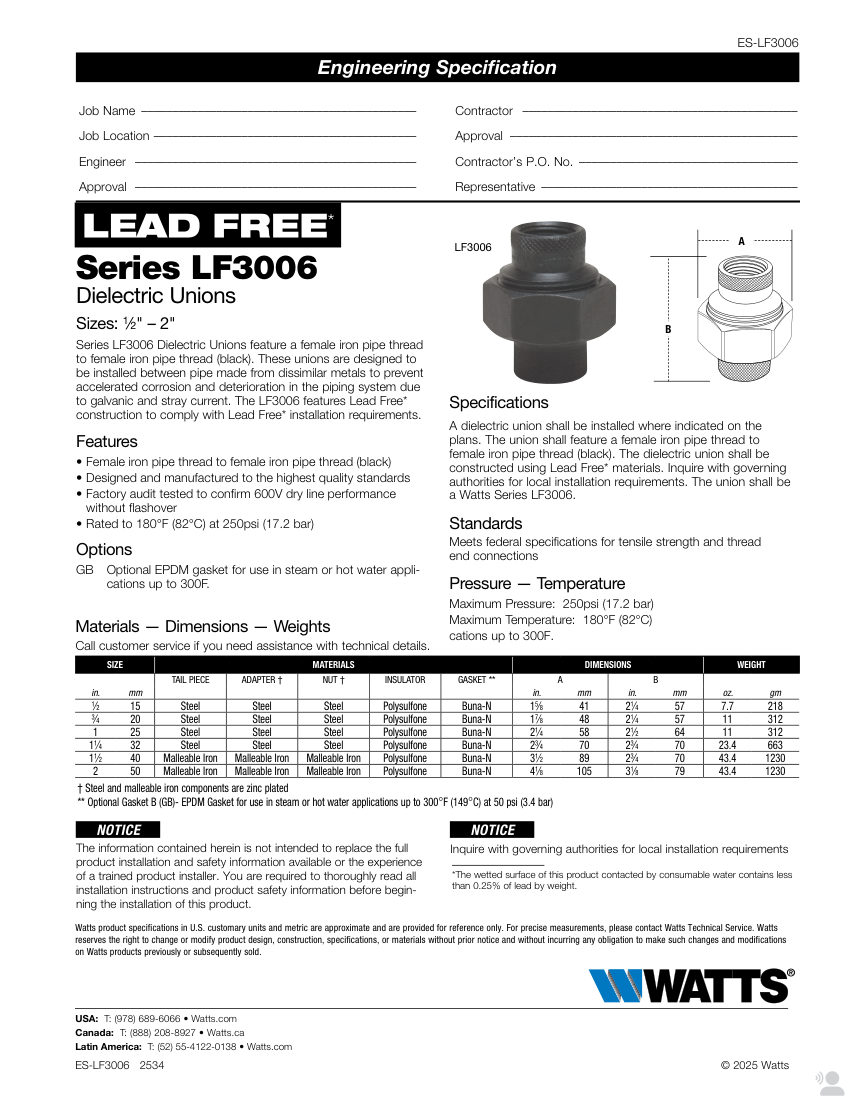

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3006. Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested to confirm 600V dry line performance without flashover; Designed to prevent galvanic corrosion between dissimilar metals; Optional EPDM gasket available for steam or hot water applications up to 300°F. material: Steel, Malleable Iron, Polysulfone, Buna-N
Connection size1/2" – 2"
End connectionFemale iron pipe thread to female iron pipe thread (black)
Pressure Rating250psi (17.2 bar)
FinishZinc plated
DimensionsVaries by size (e.g., 1/2" A=15/8", B=21/4").
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
