Watts
Watts Dielectric Union (Dielectric Unions). Model LF3008. Prevents accelerated corrosion due to galvanic and stray current; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested for 600V dry line performance without flashover; Insulator material is Polysulfone. material: Lead Free Brass, Brass, Polysulfone, Buna-N
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

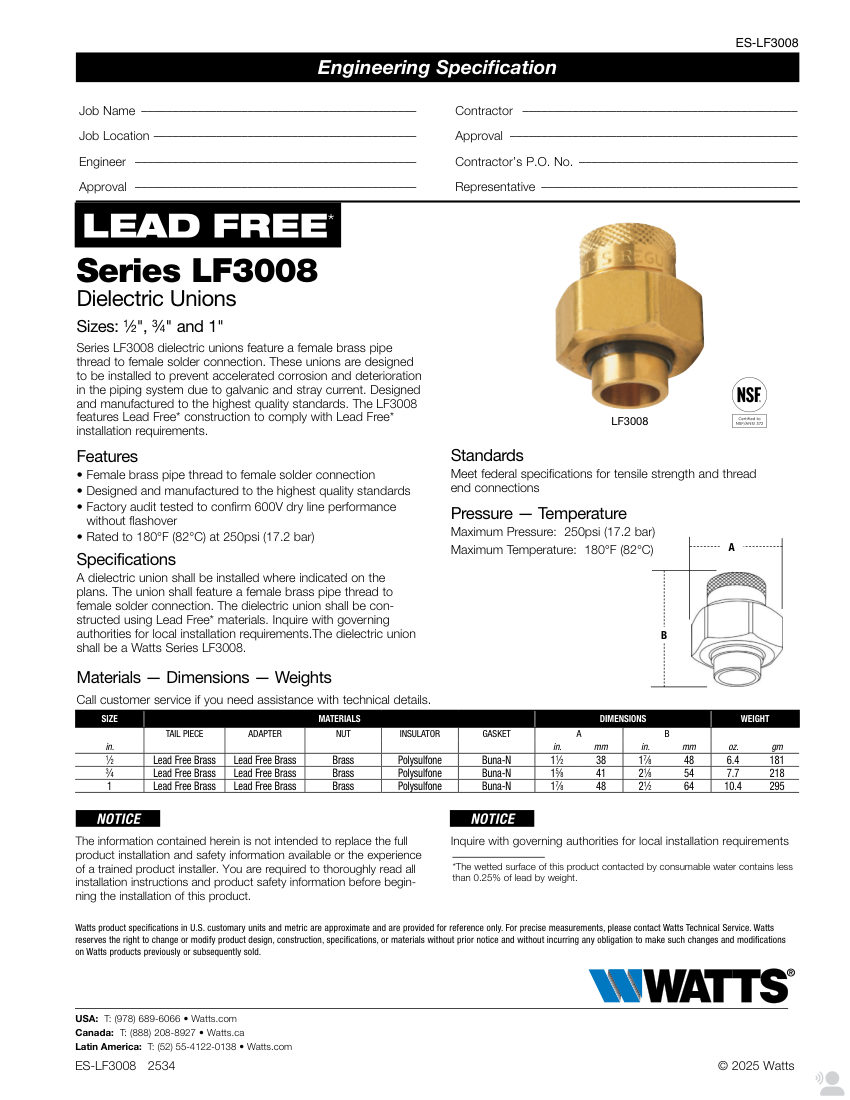

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Dielectric Union (Dielectric Unions). Model LF3008. Prevents accelerated corrosion due to galvanic and stray current; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested for 600V dry line performance without flashover; Insulator material is Polysulfone. material: Lead Free Brass, Brass, Polysulfone, Buna-N |
| Connection size | 1/2", 3/4", 1" |
| End connection | Female brass pipe thread to female solder |
| Pressure Rating | 250psi (17.2 bar) |
| Dimensions | 1/2": A=1.5"/38mm, B=1.875"/48mm; 3/4": A=1.625"/41mm, B=2.125"/54mm; 1": A=1.875"/48mm, B=2.5"/64mm |
| Compliance | Lead Free (<0.25% lea |
