Watts
Watts Dielectric Union (Dielectric Unions). Model LF301. Rated to 250°F (121°C) at 250psi (17.2 bar); EPDM Gasket temperature range: -20°F to 250°F (-7°C to 121°C); Designed for dissimilar metals to prevent galvanic corrosion; Lead Free construction for wetted surfaces. material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

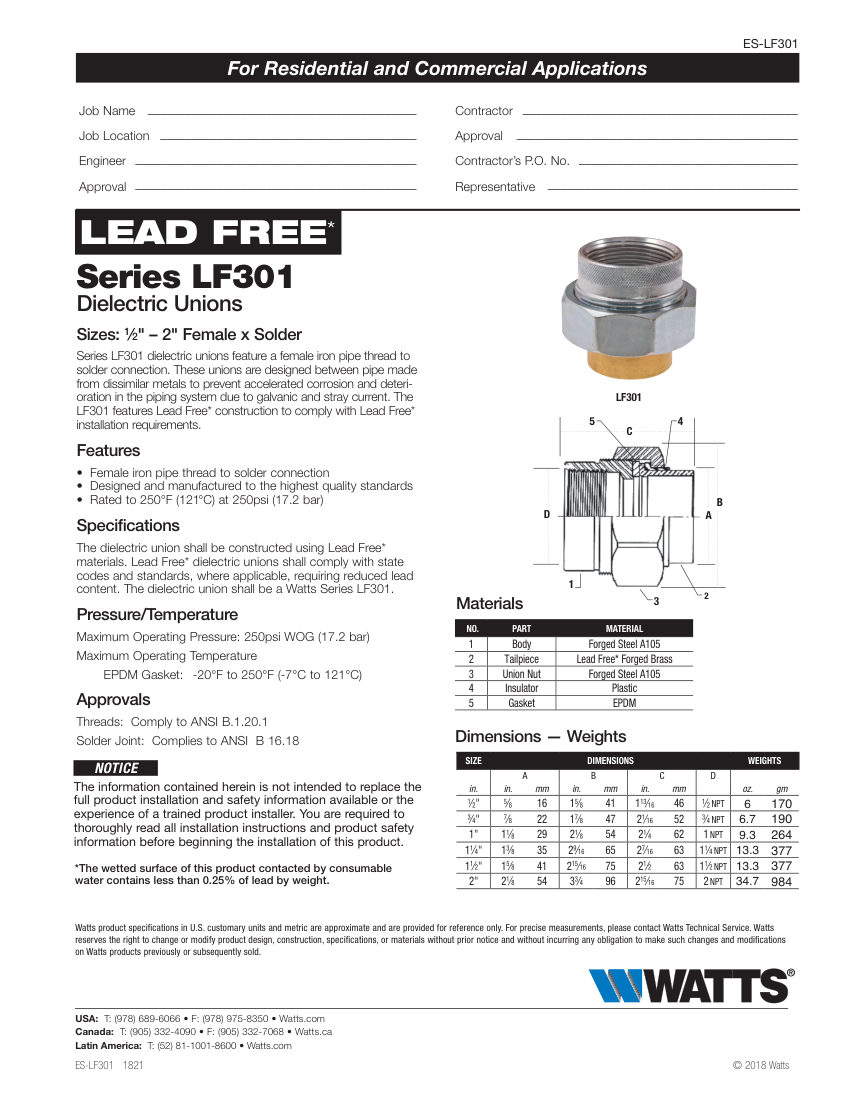

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Dielectric Union (Dielectric Unions). Model LF301. Rated to 250°F (121°C) at 250psi (17.2 bar); EPDM Gasket temperature range: -20°F to 250°F (-7°C to 121°C); Designed for dissimilar metals to prevent galvanic corrosion; Lead Free construction for wetted surfaces. material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM |
| Connection size | 1/2" – 2" |
| End connection | Female Iron Pipe Thread to Solder |
| Pressure Rating | 250psi WOG (17.2 bar) |
| Dimensions | See size chart (e.g., 1/2" NPT: A=5/8", B=16mm, C=1 5/8", D=41mm) |
| Compliance | Lead Free (<0.25% lead), ANSI B.1.20.1, ANSI B 16.18. |
