Watts
Watts Pressure Reducing Valve (Mini Water Pressure Reducing Valves). Model LF560, LFH560. Lead Free brass construction; Stainless steel stem and spring; Standard 1/8" (3mm) gauge port (plugged); Suitable for water supply pressures up to 300psi (21 bar). material: Lead Free brass body, Stainless steel stem and spring, Buna-N seat and diaphragm
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

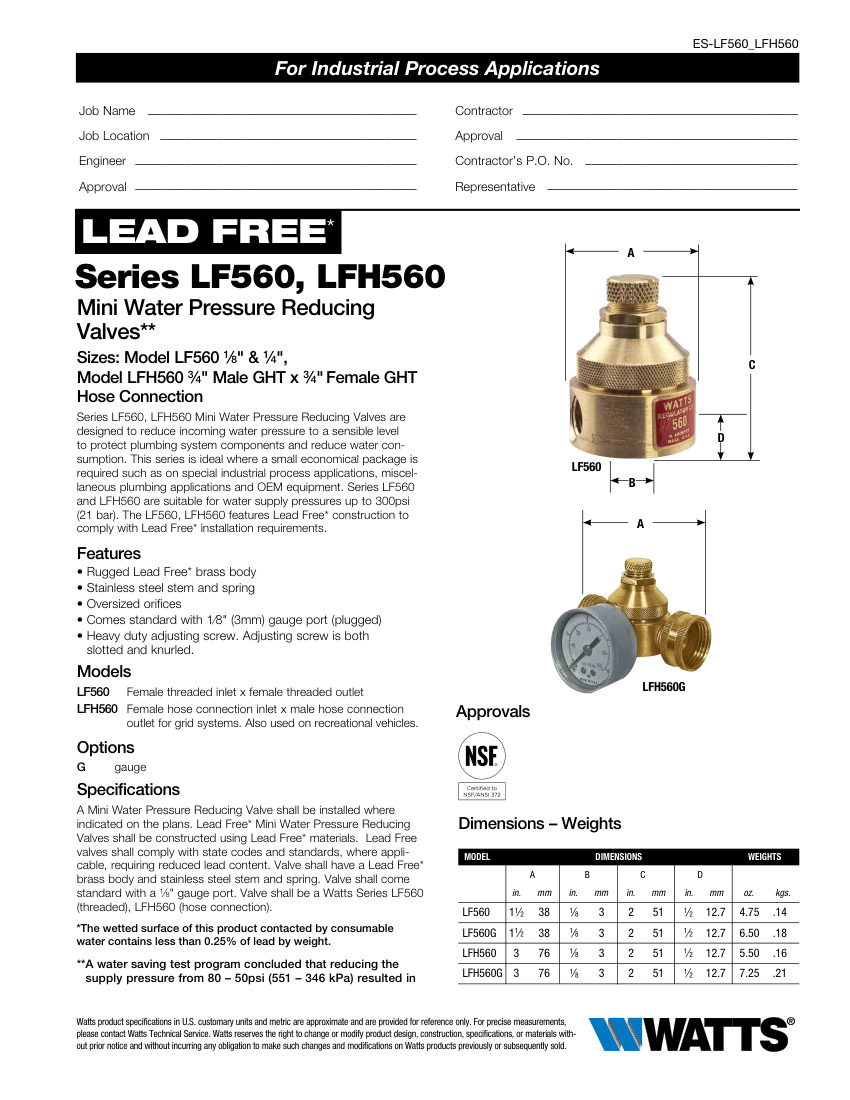

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Pressure Reducing Valve (Mini Water Pressure Reducing Valves). Model LF560, LFH560. Lead Free brass construction; Stainless steel stem and spring; Standard 1/8" (3mm) gauge port (plugged); Suitable for water supply pressures up to 300psi (21 bar). material: Lead Free brass body, Stainless steel stem and spring, Buna-N seat and diaphragm |
| Connection size | 1/8" & 1/4" (LF560), 3/4" (LFH560) |
| End connection | Female threaded (LF560), Hose connection (LFH560) |
| Pressure Rating | Up to 300psi (21 bar) supply; Reduced pressure range 0-25psi (0-1.7 bar) |
| Dimensions | A: 1.5 in (38 mm) or 3 in (76 mm) |
- Official cut sheet, indexed
- Auto-matched to your schedule
- Cover + TOC, one click
